We are now offering Flipper Rebuild Kits! These take the guess work out of what parts you need to rebuild your flippers. We offer these kits for Bally, Data East, Gottlieb®, Sega, Stern and Williams pinball games. These kits are broken down by game/year. They are meant to rebuild the main flippers on your game. If you need to rebuild the upper flippers, contact us since additional hardware is sometimes required thats not included in the kits! Please order by part number and specify the name of your game when ordering!

Looking for some tips on E/M Flipper Fixin's, see the article from
Pinball Collectors Quarterly written by Steve Young!


Bally

Early ??? to Flicker 12/74
Air Aces 02/75-Wizard 5/75
Hi-Deal 5/75 - Space Inv 4/80
Rolling Stn5/80-TruckStop11/88
Truck Stop11/88-Gilligan11/91
Addams3/92-CatcusCanyn01/99


Gottlieb®
Gypsy Queen to Lariat 9/69
Mibs 10/69 to Card Whiz 7/76
Surf Champ 8/76 – Vulcan 10/77
Cleopatra 12/77 - Spring Break 4/87
Amazon Hunt II 5/87- Big House 7/89
Bonebusters 11/89-SMB(Serial) 5/92
SMB(Serial) 6/92- Barb Wire 96

Williams
?? Around 1959-Reserve 10/61
Skill Ball 10/61-Shangri-La 3/67

Blast Off 5/67 - Laser Ball 12/79
Firepower 3/80–Joust 10/83
FirePower II 1/84-Hurricane 8/91
Getaway 2/92-MonsterB 8/98

Chicago Coin
Mid 1960's - Riviera 7/73
Dolphin/Show Time 3/74 – Cinema/Hollywood 2/76
Juke Box/Sound Stage 9/76 – Rawhide/Stampede 2/77

Old Stern
Stampede 1/77-Quicksilver 6/80
Star Gazer 9/80-Orbitor1 4/82

Data East / Sega / Stern
Laser War 12/87 / Baywatch 5/95
Batman Forever 7/95 / Stern Current




Bally Early ???? Games To Flicker 12/74

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown






Complete Kit Includes:

2 Flipper Plungers
2 Plunger Collars
2 Roll Pins
2 Return Springs
2 Coil Stops
2 Spring Washers
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws



Part#
KT-BFLIP01
$64.72

Mini Kit Includes:

2 Flipper Plungers
2 Plunger Collars
2 Roll Pins
2 Return Springs
2 Coil Stops
2 Spring Washers



2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws


Part#
KT-BFLIP01M
$40.78

Bally Air Aces 2/75 To Wizard 5/75

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown

Complete Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 Allen Key
2 Flipper Bushing
2 Spring Washers
2 Sleeves
2 EOS Switches
8 Screws

Part#
KT-BFLIP02
$48.70

Mini Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops



2 Flipper Bushing
2 Spring Washers
2 Sleeves
2 EOS Switches
4 Screws

Part#
KT-BFLIP02M
$34.90

Bally Hi-Deal 5/75 To Space Invaders 4/80

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown




Complete Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
2 Spring Washers
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws

Part#
KT-BFLIP03
$50.78

Mini Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
2 Spring Washers



2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws

Part#
KT-BFLIP03M
$36.98

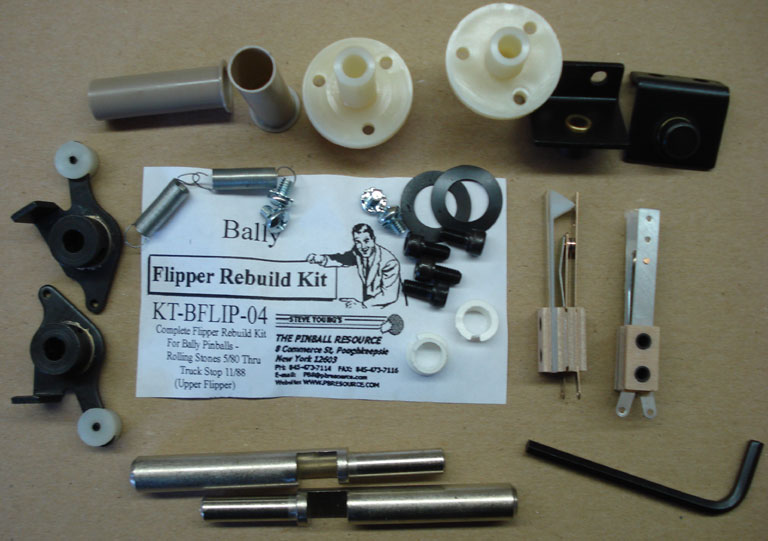

Bally Rolling Stones 5/80 To Truck Stop (Upper flippers) 11/88
Excluded Game: Eight Ball Champ (Unique Hardware)

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown





Complete Kit Includes:

2 Flipper Plungers
2 Flipper Nyliners
2 Return Springs
2 Coil Stops
2 Spring Washers
1 Flipper Pawl Assy-R
1 Flipper Pawl Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws

Part#
KT-BFLIP04
$60.16

Mini Kit Includes:

2 Flipper Plungers
2 Flipper Nyliners
2 Return Springs
2 Coil Stops
2 Spring Washers



2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws

Part#
KT-BFLIP04M
$36.66

Bally Truck Stop(Lower Flippers)11/88 To Gilligan 11/91
Standard (Non-Fliptronic)
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!



Deluxe Kit Shown
Derived From A-13524-1
Enhanced Incorporating Customer Feedback








Deluxe Kit Includes:

2 Cranks & Links Assy
2 Return Springs
2 Tapered Spring
2 Coil Stops
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
2 Capacitor-2.2
2 Bulk Tie Wraps
4 Hex Cap Screw
6 Screws/Washers
4 Lock Washer
6 Nuts
2 Rubber Stop Plugs

Part#
KT-WFLIP05
$42.56

Half Kits Available for Third Upper Flipper

Right Upper Flipper
Part#
KT-WFLIP05-R
$21.78


Left Upper Flipper
Part#
KT-WFLIP05-L
$21.78

Bally Addams Family 11/92 To Cactus Canyon 01/99
Fliptronic
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!



Deluxe Kit Shown
Derived From A-13524-8
Enhanced Incorporating Customer Feedback






Deluxe Kit Includes:

2 Cranks & Links Assy
2 Return Springs
2 Coil Stops
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Hex Cap Screw
6 Screws/Washers
4 Lock Washer
6 Nuts
2 Rubber Stop Plugs

Part#
KT-WFLIP06
$33.82

Half Kits Available for Third Upper Flipper

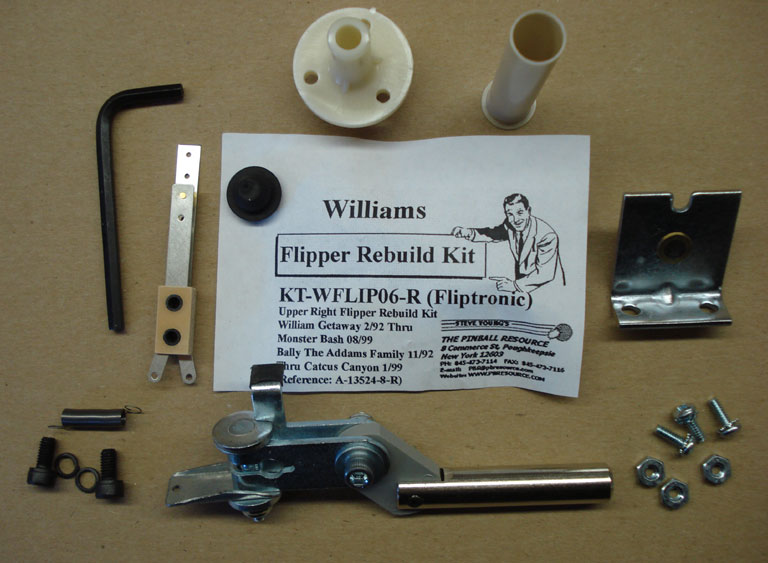

Right Upper Flipper
Part#
KT-WFLIP06-R
$17.41


Left Upper Flipper
Part#
KT-WFLIP06-L
$17.41

Gottlieb® Gypsy Queen 1/55 to Lariat 9/69

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!

*NOTE: Some coils from the 50's & early 60's have built in sleeves that are not replaceable. We don't recommend trying to replace these sleeves with the ones from our kit.


Complete Kit Shown








Complete Kit Includes:

2 Plungers & Links Assy
1 Return Spring-R
1 Return Spring-L
2 Coil Stops
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws
2 Retaining Rings

Part#
KT-GFLIP01
$53.36

Mini Kit Includes:

2 Plungers & Links Assy


2 Coil Stops



2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws
2 Retaining Rings

Part#
KT-GFLIP01M
$34.20

Gottlieb® Mibs 10/69 to Card Whiz 7/76

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Mini Kit Shown





Mini Kit Includes:

2 Plungers & Links Assy
2 Coil Stops
2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws


Part#
KT-GFLIP02M
$33.90

Gottlieb® Surf Champ 8/76 to Vulcan 10/77

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Mini Kit Shown


Mini Kit Includes:

2 Plungers & Tips
2 Return Springs
2 Spring Washer
2 Coil Stops
2 Flipper Bearing -T
2 Flipper Bearing -B
2 Sleeves
2 EOS Switches
4 Screws



Part#
KT-GFLIP03AM
$33.10

Gottlieb® Cleopatra 12/77 to Spring Break 04/87

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!

*NOTE: If your game has been Upgraded with either MA988 or MA989,This is Not the rebuild kit you need. See Section Gottlieb® Amazon Hunt 05/87 to Big House 07/89* and click Detailed Breakdown.


Mini Kit Shown




















Mini Kit Includes:

2 Plungers & Tips
2 Spring Washer
2 Coil Stops
2 Return Springs
2 Flipper Bearing -T
2 Flipper Bearing -B
2 Sleeves
2 EOS Switches
4 Screws



Part#
KT-GFLIP03M
$33.10

Gottlieb® Amazon Hunt 05/87 to Big House 07/89
During this time frame, Gottlieb® had a different EOS switch for each game. We don't offer a kit since each game would require their own rebuild kit. We list all of the EOS switches by game and all of the flipper parts used in the assembly during that time – see our Detailed Breakdown for the parts.

This covers Late system 80/B games
Amazon Hunt II
Arena
Victory
Diamond Lady
TX-Sector
Big House
Robo-War
Excalibur
Bad Girls
Hot Shots
Night Moves
System 80, System 80/A, System 80/B that had Field Upgrade MA988 or MA989 installed.

Gottlieb® BoneBusters 11/89 to Super Mario Bros(Serial Number less than 90501) 5/92

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown


Complete Kit Includes:

2 Plungers & Links Assy
2 Spring Washers
2 Return Springs
2 Coil Stops
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 EOS Switch & Cap-R
1 EOS Switch & Cap-L
2 Flipper Bearings
2 Sleeves
10 Screws
6 Washer
2 Retaining Rings
2 Allen Keys

Part#
KT-GFLIP04
$67.92

Mini Kit Includes:

2 Plungers & Links Assy
2 Spring Washers
2 Return Springs
2 Coil Stops




2 Flipper Bearings
2 Sleeves
6 Screws
6 Washers
2 Retaining Rings
1 Allen Key

Part#
KT-GFLIP04M
$23.52

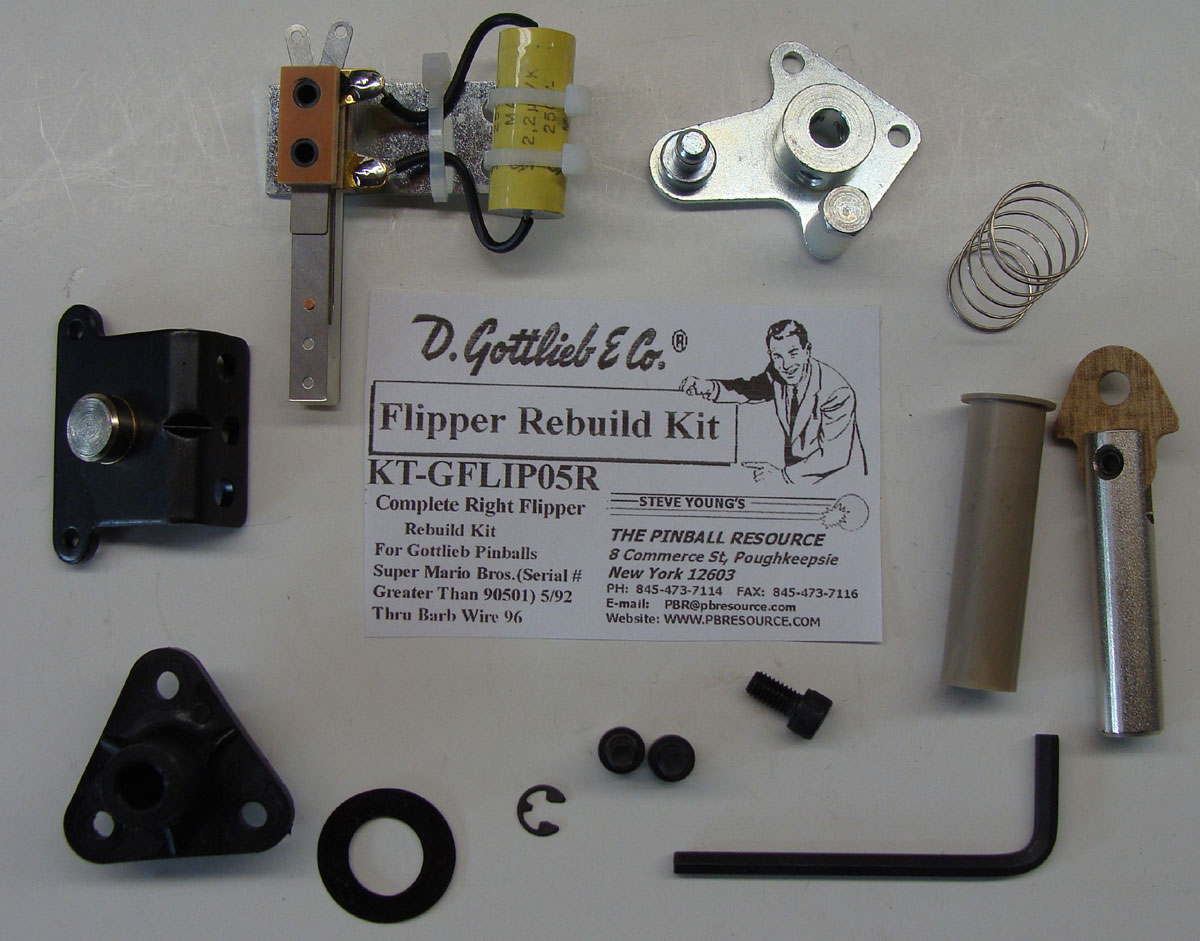

Gottlieb® Super Mario Bros(Serial Number greater than 90501) 5/92 to Barb Wire 96

Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown








Complete Kit Includes:

2 Plungers & Links Assy
2 Spring Washers
2 Return Springs
2 Coil Stops
1 Lever Arm Assy-R
1 Lever Arm Assy-L
1 EOS Switch & Cap-R
1 EOS Switch & Cap-L
2 Flipper Bearings
2 Sleeves
10 Screws
6 Split Washers
2 Retaining Rings
1 Allen Key

Part#
KT-GFLIP05
$67.80

Mini Kit Includes:

2 Plungers & Links Assy
2 Spring Washers
2 Return Springs
2 Coil Stops




2 Flipper Bearings
2 Sleeves
6 Screws
6 Split Washers
2 Retaining Rings
1 Allen Key

Part#
KT-GFLIP05M
$23.40

Williams From About 1959 To Reserve 10/61
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!

*NOTE: Some coils from the 50's & early 60's have built in sleeves that are not replaceable. We don't recommend trying to replace these sleeves with the ones from our kit.


Complete Kit Shown

Complete Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
1 Flipper Pawl Assy-R
1 Flipper Pawl Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws


Part KT-WFLIP-02
$55.14

Mini Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops



2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws


Part KT-WFLIP-02M
$37.44

Williams Skill Ball 10/61 To Shangri-La 3/67
Excluded: Games that use Make/Break EOS Switch SW-12A-6 / A-5325-2
Excluded: Beat the Clock Upper Flippers
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown

Complete Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
1 Flipper Pawl Assy-R
1 Flipper Pawl Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws


Part KT-WFLIP-03
$55.14

Mini Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops



2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws


Part KT-WFLIP-03M
$37.44

Williams Blast Off 5/67 To Laser Ball 12/79
Excluded: Closing Flipper Games like Doozie
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Complete Kit Shown








Complete Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops
1 Flipper Pawl Assy-R
1 Flipper Pawl Assy-L
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
8 Screws


Part#
KT-WFLIP04
$53.84

Mini Kit Includes:

2 Plungers & Links Assy
2 Retaining Rings
2 Return Springs
2 Coil Stops



2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Screws


Part#
KT-WFLIP04M
$36.14

Williams Firepower 3/80 To Joust 10/83
During this time frame, Williams started attaching the coil stop to the base plate. Please look at the pictures below to determine which base plate you have and what part to order.


Compare your baseplate to the one in the picture. How is your coil stop attached to the baseplate?

Coil Stop and baseplate a single piece?

If your coil stop is part of the baseplate or is welded to the baseplate, you need additional parts in addition to a flipper rebuild kit. We have all of the parts you need in stock, but they are game specific. Would suggest contacting us with the game name so we can explain what you need to do to rebuild these flippers!

Coil Stop attached by 2 screws to the baseplate?

If your coil stop is removable from the baseplate via 2 screws(like in the picture). You will need to order flipper rebuild kit
KT-WFLIP05
listed below.



Williams Fire Power II 1/84 To Hurricane 08/91
Standard (Non-Fliptronic)
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Deluxe Kit Shown
Derived From A-13524-1
Enhanced Incorporating Customer Feedback





Deluxe Kit Includes:

2 Cranks & Links Assy
2 Return Springs
2 Tapered Spring
2 Coil Stops
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
2 Capacitor-2.2
2 Bulk Tie Wraps
4 Hex Cap Screw
6 Screws/Washers
4 Lock Washer
6 Nuts
2 Rubber Stop Plugs

Part#
KT-WFLIP05
$42.56

Half Kits Available for Third Upper Flipper

Right Upper Flipper
Part#
KT-WFLIP05-R
$21.78


Left Upper Flipper
Part#
KT-WFLIP05-L
$21.78

Williams Getaway HSII 02/92 To Monster Bash 8/99
Fliptronic
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Deluxe Kit Shown
Derived From A-13524-8
Enhanced Incorporating Customer Feedback




Deluxe Kit Includes:

2 Cranks & Links Assy
2 Return Springs
2 Coil Stops
1 Allen Key
2 Flipper Bushing
2 Sleeves
2 EOS Switches
4 Hex Cap Screw
6 Screws/Washers
4 Lock Washer
6 Nuts
2 Rubber Stop Plugs

Part#
KT-WFLIP06
$33.82

Half Kits Available for Third Upper Flipper

Right Upper Flipper
Part#
KT-WFLIP06-R
$17.41


Left Upper Flipper
Part#
KT-WFLIP06-L
$17.41

Data East Laser War 12/87 To Sega BayWatch 5/95
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!

Each kit rebuilds 1 Flipper!

The same kit will rebuild either the left or right flipper.
*Note – If you don't need the entire kit – contact us for alternatives! *

500-6306-20
Not
Currently
Available! -See Detailed Breakdown of parts that are available

Sega Batman Forever 7/95 To Stern Current
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


500-6307-00 Pictured!

Each kit rebuilds 1 Flipper!

500-6307-00 Right Flipper
500-6307-10 Left Flipper

500-6307-00 $34.11
500-6307-10 $34.11

Old Stern Early Stampede 1/77 To Quicksilver 6/80
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Kit Not Currently Offered – See Individual Parts we can offer


Old Stern Later Star Gazer 9/80 To Orbitor 1 4/82
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Kit Not Currently Offered – See Individual Parts we can offer


Chicago Coin Mid 1960's To Riviera 7/1973
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Kit Not Currently Offered – See Individual Parts we can offer


Chicago Coin
Dolphin/ShowTime 3/1974 To
Cinema/Hollywood 2/1976
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Kit Not Currently Offered – See Individual Parts we can offer


Chicago Coin
Juke Box/Sound Stage 9/1976 To
Rawhide/Stampede 2/1977
Don't see the part you need/want or are there more parts than you need/want, No Problem, see our Detailed Breakdown of the parts for this age game and purchase just what you need/want!


Kit Not Currently Offered – See Individual Parts we can offer


Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2017 The Pinball Resource
