Bally Flipper Rebuild Kit KT-BFLIP02 Detailed Listing of parts with non-kitted parts.

Parts Found in the Mini Kit
KT-BFLIP02M

Parts Found in the Complete Kit KT-BFLIP02

Parts Not Found in Kit
KT-BFLIP02
or
KT-BFLIP02M

Bally Mini Kit Parts KT-BFLIP-02M

Flipper Plunger / Link Assembly

2 Flipper Plungers / Link Assemblies A-3714 included in Kit KT-BFLIP-02M

BLY-A3714+ $4.58ea

Compression Return Spring

2 Compression Return Springs
10-135 (Substitute for SP-200-185)
included in Kit KT-BFLIP-02M

WLL-10-135 $0.60ea

Coil Stop

2 Enhanced Coil Stops A-613-67
included in Kit KT-BFLIP-02M

BLY-A613-67+ $4.50ea

Flipper Bushing

2 Flipper Bushings A2408 (Substitute for C-649-5)
included in Kit KT-BFLIP-02M

GTB-A2408 $1.25ea

Coil Sleeve

2 Coil Sleeves included in Kit KT-BFLIP-02M

SLEEVE-BLY-STD $0.45ea

Spring Washer

2 Spring Washer FA605 (Substitute for P-1158-6) included in Kit KT-BFLIP-02M

GTB-FA605+ $0.26ea

EOS Switch
(High Current)

2 End Of Stoke(EOS) Switches
ASW-A20-23 included in Kit KT-BFLIP-02M

BLY-ASWA2023+ $4.66ea

Screws

4 Screws 8-32-1/4 included in Kit KT-BFLIP-02M

HDW-8-32-1/4 $0.25ea

3/16” C-Ring

2 3/16” C-Rings included in Kit KT-BFLIP-02M

HDW-CRING316 $0.15ea

Bally Complete Kit Parts KT-BFLIP-02
In Addition to the parts from the Mini kit listed above, the complete kit also includes the following

Right Hand Side Lever Assembly

1 Enhanced Right Hand Side Lever Assembly included A-3711-2

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

BLY-A3711-2+ $6.90ea

Left Hand Side Lever Assembly

1 Enhanced Left Hand Side Lever Assembly included A-3711-3

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

BLY-A3711-3+ $6.90ea

Allen Wrench

For the 4 FA90 10-32 X 3/8” Socket Head Cap Screws listed above included in Kit KT-BFLIP-02


Parts NOT Found in Kit
KT-BFLIP-02






Flipper Coils

Varies by game – see your game Manual/Schematic for which ones are used in your game.

Coils we offer are listed here.


EOS Form A Switch

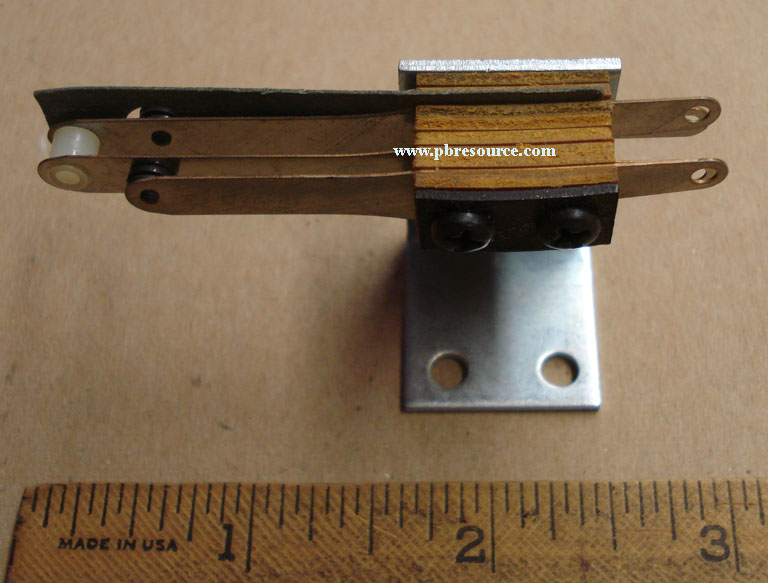

If your game has more than two flippers, the Upper Flippers are probably powered by a EOS FORM A Switch. Look at your game and see if your lower flippers have a stacked switch like AS-982-588.

The stacked switch is a sandwich of the DE-180-5018+ EOS switch listed above and this EOS FORM A Switch ASWA-10-45.

The ASWA-10-45 is a high current switch like the DE-180-5018+.



BLY-ASWA1045+ $4.19ea

Flipper Link


For those that don't need the complete Flipper Plunger and Link Assembly A-3714, we offer the link only P-1973-372

BLY-P1973-372 $1.85ea

Flipper Plastics and Shoe and Shaft Assemblies


Can be seen Here


Flipper Rubber


Can be seen Here
