Sega/Stern Flipper Rebuild Kit 500-6307-00 and 500-6307-10 Detailed Listing of parts with non-kitted parts.

Parts Found in Kits
500-6307-00
and
500-6307-10

Parts Not Found in Kits
500-6307-00
and
500-6307-10

Sega/Stern Rebuild Kit Parts for
500-6307-00 and 500-6307-10

Right Plunger Crank Assembly

Right Flipper Crank Assembly
515-7203-00
1 included in kit 500-6307-00

DE-515-720300 $21.51ea

Left Plunger Crank Assembly

Left Flipper Crank Assembly
515-7203-01
1 included in kit 500-6307-10

DE-515-720301 $21.51ea

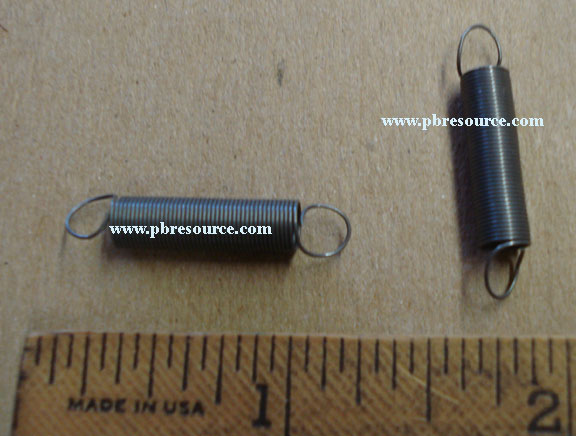

Return Spring

Return Spring
265-5035-00

1 included in both kits

DE-265-503500 $3.78ea

Coil Stop

Coil Stop
515-6308-01

1 included in both kits

DE-515-630801 $7.90ea

Coil Sleeve

Coil Sleeve 2-3/16:
Reference: 545-5388-00


1 included in both kits

SLEEVE-2-3/16 $0.45ea

Low Current EOS Switch

180-5149-00


1 included in both kits

DE-180-514900 $7.08ea

Sega/Stern Not Found In Kits
500-6307-00 and 500-6307-10

Right Flipper BasePlate Assembly

515-6617-00

DE-515-661700 $14.70ea

Left Flipper BasePlate Assembly

515-6617-01

DE-515-661701 $15.34ea

Flipper Bushing

Flipper Bushings
545-5070-00

DE-545-507000 $1.20ea

Left Switch Plate and Spring Bracket

535-7354-01

DE-535-735401 $1.62ea

Right Switch Plate and Spring Bracket

535-7354-00

DE-535-735400 $1.62ea

Pawl /Crank Bar


Included in Crank Assembly listed above but also offered as a separate part

530-5070-02

DE-530-507002 $11.06ea

Sping Washer

Substitute

GTB-FA605+ $0.26ea

Flipper Link Bushing
530-5139-00

DE-530-513900 $1.56ea


Rubber Grommet
545-5428-00

DE-545-542800 -$1.52ea

Coil Support Bracket
535-7356-00

DE-535-735600 $1.56ea

Plunger Link Assembly

Included in Crank Assembly listed above but also offered as a separate part
515-6304-03

DE-515-630403 $7.90ea

Right Switch Actuator Assembly

Included in Crank Assembly listed above but also offered as a separate part
515-7257-00

DE-515-725700 $8.18ea

Left Switch Actuator Assembly

Included in Crank Assembly listed above but also offered as a separate part
515-7257-01

DE-515-725701 $8.18ea

Flipper Coils

Varies by game – see your game Manual/Schematic for which ones are used in your game.

Coils we offer are listed here.



Flipper Rubber and Flipper Plastics


Can be seen Here and Here
