Old Stern Early Flipper Parts.


B195-X Flipper Assembly

Flipper Plunger and Link Assembly

Flipper Plunger and Link Assemblies
A197

STN-A197 -Not Currently Available

Flipper Link

Flipper Link
-Would provide substitute 4A-299

STN-4A299 $1.94ea

Compression Spring

Compression Spring
25A-1-4004 -Would provide as substitute 10-326+

WLL-10-326+ $0.55ea

Flipper Bushing

Flipper Bushings
4A-111-W1

STN-4A111-W1 $3.38ea

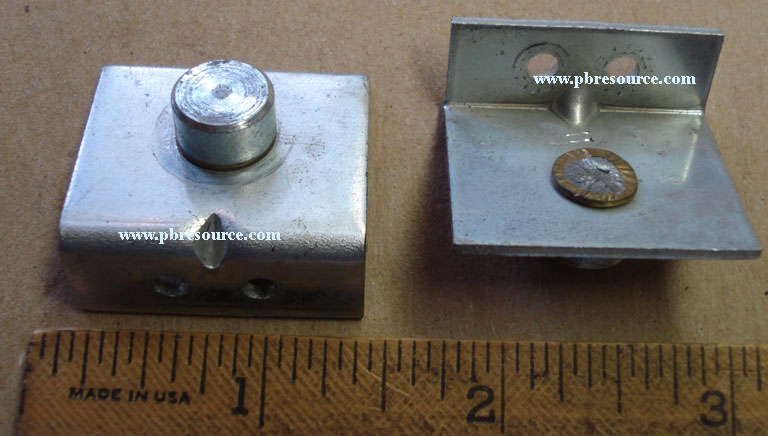

Coil Stop

Coil Stop
A186

CCM-A186 -Out of Stock

Left Hand Side Lever Arm

LHS Lever Arm
A-191-L

CCM-A191L $5.63ea

Right Hand Side Lever Arm

RHS Lever Arm
A-191-R

CCM-A191R $5.63ea

Coil Sleeve

Coil Sleeve 4A-152

SLEEVE-WMS Standard $0.45ea

High Current EOS Switch

EOS Switch SW-294-BL
(Left)
EOS Switch SW-294-BR
(Right)
-Would provide substitute
180-5018-00

DE-180-5018+ $5.74ea

EOS Form A Switch

If your game has more than two flippers, the Upper Flippers are probably powered by a EOS FORM A Switch. The EOS Form A Switch is SW-481, -We would provide substitute
ASWA1045+

BLY-ASWA1045+ $4.19ea

Lane Change Switch

If your game has a stacked EOS and the second EOS switch is low current switch, its probably a Lane Change Switch. This is the switch the moves the light for the A,B,C Lanes when the flipper button is pushed.


On a High Current switch, the contact is almost as wide as the blade, on a low current switch, the contact is about half the width of the blade.


We offer a substitute for the Lane Change Switch
SW1A-150.


WLL-SW1A-150+ $2.79ea

Right Flipper BasePlate

1B-309-R

STN-1B309-R Out Of Stock

Left Flipper BasePlate

1B-309-L

STN-1B309-L Out Of Stock

Flipper Coils

Varies by game – see your game Manual/Schematic for which ones are used in your game.

Coils we offer are listed here.



Flipper Plastics and Flipper Rubber


Can be seen Here and Here
