The Pinball Resource Toolbox Page

The Pinball Resource stocks tools, parts, and material to help you maintain and repair your games. Our toolbox is not meant to replace your local hardware store but to give you a place to find Pinball specific tools, parts, and materials.

We also offer a unique selection of material for you to make your own parts in case the parts are no longer available or you need a quick repair until the correct parts arrive!

Tools

Material

Parts

Mylar / Vinyl

Switch Parts

Target Faces

Batteries & Holders

Nyliner
Bally
Gottlieb
®
Stern/DE
Williams/Bally



Tools

Tool

Description

Part Number

Price


Flexstone
An emery like flexible file for cleaning regular contacts

FLX



***

$2.25ea


Plastone® Flexstone
An emery like flexible file for cleaning regular contacts from Plastone®.

TL-PLASTONE

$2.54ea






Metal Contact File
A stiff file for cleaning high current and tungsten contacts.

FILE

***

$3.50ea






Light Socket Cleaning Stick
A tool for improving the light bulb connection with the socket. Cures some sockets not working and eliminates dull illuminating bulbs. (Not recommend for late 70-80's Bally games – due to cheap sockets being used).
***REC

STI



***

$7.07







Rubber Light Bulb Remover


Tired of struggling to replace those Light bulbs? We offer a flexible rubber remover which can be used to remove or insert new light bulbs. Fits most size bulbs used in Pinball Machines.

REM


***

$3.00ea






L” Contact Adjuster

The correct an easy to use tool to adjust your switches! This is bent in the shape of an “L” to fit those hard to reach switches. A quality tool made to Gottlieb® specifications.

ADJ


***
(For E/M Games)

$4.56ea






Circuit Board Removal Tool

This tool is for Solid State games. It allows the quick removal of PCB Circuit boards using the white stand-offs.

GTB-A18131

$1.08ea






Molex “F” Crimpers

A Molex Crimper for attaching the pins to the wires. This tools is for Solid State games, especially useful for System/1 & System 80 Gottlieb®, Bally and Williams connectors for G.I & Power !

MOL-WHT1921

$22.00ea

T” Wrench


NOS Gottlieb T Wrench
A-4726 (3/32” Across Flats) fits #10 & #12 set screws.

GTB-A4726

$3.50ea

T” Wrench

NOS Gottlieb T Wrench
#A-6513 (9/64” Across Flats) fits #8 cap screws.

GTB-A6513

$3.50ea



7 Piece TORX Bit Kit

A set of 7 tamperprof bits for removing those Williams/Bally security screws!

TL-TORX-KIT

$6.50ea






Palnut Removal Tool

Do you have a Gottlieb® pinball game with the Acorn Speed Nuts? Have you ever taken one off without the post getting unscrewed from the playfield? This tool is Gottlieb®'s answer , the right tool for the job! We have sold out of the original Gottlieb® Tool! It's been so popular, we have remade this tool!
Click on the thumbnail for the original Gottlieb® instructions!

This tool also works Great on those Nylon Posts Caps
(BLY-POSTCAP)
used on Williams and Bally games!

GTB-26181+

$4.00ea





Data East Backbox Allen Wrench

For securing Data East/Sega/Stern backboxes.

DE-777-0001-00

$10.64ea

Pin Punches


TL-PIN-18 Shown


TL-PIN-532 Shown


Pilot Punches


TL-PILOT-18 Shown


TL-PILOT-532 Shown


Pin Punches/Pilot Punches

For removal of Roll Pins, Straight, and Tapered Pins. Commonly used in Plunger/Link assemblies.

Pin Punch is a “Standard Issue”. Pilot Punches have the added benefit of a pilot pin to help center the punch on the roll pin(cannot be used on straight pins).

1/8” :used for most Electromechanical games

5/32” : used for Gottlieb® Unitized Flippers and Williams 1985 and later games.

Associated Parts
1/8 Diameter X 7/16 Roll Pins
#HDW-ROLL-18 $0.25ea

5/32 Diameter X 7/16 Roll Pins
#HDW-ROLL-532 $0.25ea

Pin Punches
1/8” #TL-PIN-18
5/32” #TL-PIN-532
3/16” #TL-PIN-316





Pilot Punches
1/8” #TL-PILOT-18
5/32” #TL-PILOT-532


$8.34ea
$8.34ea
$9.32ea









$9.15ea
$10.48ea

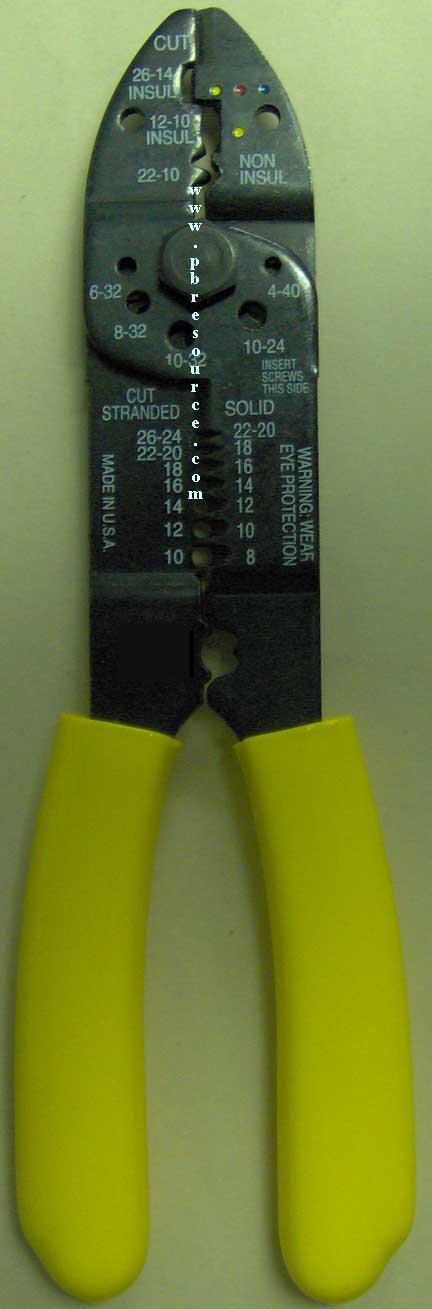

Crimper /
Bolt Cutter /
Wire Stripper



Offered for use with the MAT-THREAD kit listed below!
Made in USA.

TL-STRIP/CUT

$23.87


TL-TUMBLER Shown


TL-TUMBLER-WM Shown

Tumbler



To clean those old metal grimy parts!

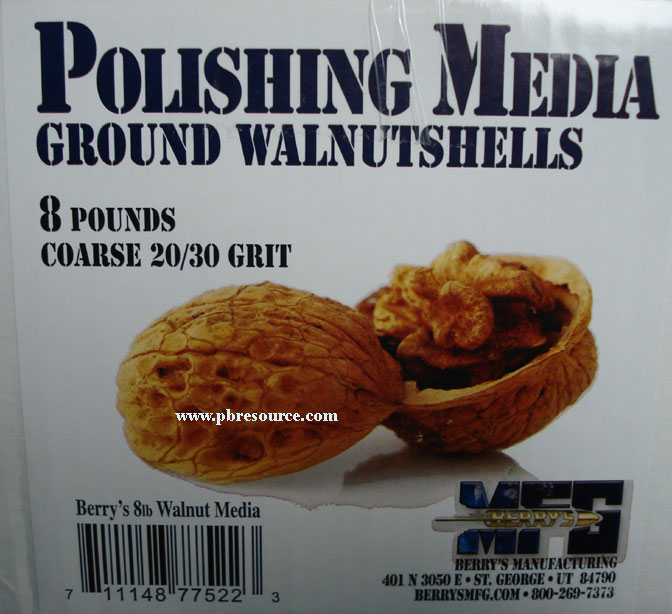

Ground Walnut Shells Polishing Media for above Tumbler!
*Note Media is 8 Pounds -Can be expenisve to ship depending on your location!

TL-TUMBLER

TL-TUMBLER-WM

$92.12ea

$27.98ea

Contact Disc Grease


Contact disc grease (used by all the electromechanical game makers), commonly called MBI Grease, has been unavailable for years. Remember the small leftover tubes you sometimes found in the bottom of a game? We used to purchase in bulk and repackage back in the 1990's...then it went away and we could not find it. I babied the small amount I had left for my own use.


I finally reached my frustration limit and found someone who would work with me to formulate a substitute which we are calling PBR-Grease. It is formulated as a mechanical and electrical grease which will protect against oxidation and galvanic corrosion. Packaged in handy 1 oz. (28 grms) wide mouth jars that fit in the tool box just great. It still looks the same but smells a bit different; hope you enjoy it as I feel it fills a need.

PBR-GREASE

$8.96ea

Repair Material For Your Toolbox to make Emergency Repairs or to make parts that are
No Longer Available!

Part

Description

Part Number

Price


6” X 6” Tempered Blue Spring Steel Ramp Flap Material
.010” Thick

Ramp flap rusty or just No Longer Available. We offer Temper Blue Spring Steel material for you to make your own. This comes in a sheet, 6” by 6”. Size used on newer 90's games.

MAT-SHIM-10

Available In longer lengths! Price is per 6” length!

$4.64ea

6” X 6” Tempered Blue Spring Steel Ramp Flap Material
.006” Thick

Ramp flap rusty or just No Longer Available. We offer Temper Blue Spring Steel material for you to make your own. This comes in a sheet, 6” by 6”. Size used on older games.

MAT-SHIM-6



Available In longer lengths! Price is per 6” length!

$4.50ea


6” X 12” Tempered Blue Spring Steel Ramp Flap Material
.004” Thick

Baseball Game flap rusty or just No Longer Available. We offer Temper Blue Spring Steel material for you to make your own. This is the correct thickness for Baseball games. This comes in a sheet, 6” by 12”. Size used on older games.

MAT-SHIM-4

$9.00ea


Rivets

Our collection of rivets used in Pinball Machines. These are Semi-Tubular!

Brass
GTB-FA555 1/8 X 1/8
GTB-FA550 1/8 X 5/32
GTB-FA573 1/8 X 7/32
GTB-FA571 1/8 X 1/4
GTB-FA552 1/8 X 9/32
GTB-FA554 1/8 X 13/32
GTB-FA556 1/8 X 7/16
GTB-FA574 1/8 X ½
GTB-25380 1/8 X 43/64
GTB-A4907 3/32 X 5/32
GTB-A1115 3/32 X 11/64
GTB-FA560 3/32 X 7/32
GTB-FA557 3/32 X 5/16
GTB-28537 3/16 X ¼

Other
GTB-FA550A 1/8 X 5/32 -
Nickel Plated(Brass)
GTB-FA551A 1/8 X 7/32 -
Nickel Plated (Steel) -
Used for Target Faces & Most Ramp Flaps
GTB-FA553 1/8 X 5/8 -Zinc Plated(Steel)
GTB-FA572 1/8 X 9/32 -(STAINLESS)
GTB-FA575 1/8 X 5/16 -(STAINLESS)
GTB-A4071 3/32 X 3/32 -(STAINLESS)
GTB-A14065 3/32 X 9/64 -(STAINLESS)

GTB-FA555
GTB-FA550
GTB-FA573
GTB-FA571
GTB-FA552
GTB-FA554
GTB-FA556
GTB-FA574
GTB-25380
GTB-A4907
GTB-A1115
GTB-FA560
GTB-FA557
GTB-28537
GTB-FA550A
GTB-FA551A
GTB-FA553
GTB-FA572
GTB-FA575
GTB-A4071
GTB-A14065

$0.15ea


Gottlieb® Plastic Rivets

NOS Gottlieb® Plastic rivets used on System 3 games.

GTB-MP10 .28”long
GTB-MP91 .39” long

GTB-MP10
GTB-MP91

$0.25ea


BeerSeal

For lockdown bars, backboxes, or any other sealing task. This is black beerseal that is 1/2” wide

MAT-BEERSEAL

$0.80Per Foot






Piano Wire

A 3 piece kit of wire(1 foot each) in the most common sizes/weights for you to make your own ball gate.

MAT-MUSIC-KIT

$2.00ea






Paint Stick

For painting recessed areas of coin doors and coin entrance housings.

PAINTSTICK

$3.60ea

Threaded Rod Kit


Ever been 25 miles from home...or late at night trying to finish a game....or.....and you busted a critical playfield screw, one that you don't have, one that you can't afford to wait to order?

Here is a solution...our threaded rod kit....a foot of #6, #8, and #10 threaded rod with a bunch of like sized nuts, washers and tee-nuts. This and a bolt cutter found in most crimpers and you can fashion a replacement. We didn't say "factory replacement part", we said "fix it fast". Handy to keep in your tool box for an emergency. Total piece count 57. Zinc plated steel. Made in USA.

MAT-THREAD

$8.44


HDW-TEE-632 Shown

HDW-TEE-832 Shown
HDW-TEE-10-32 Shown
HDW-TEE-5-16 Shown
(Not Plated)

HDW-TEE-3-8 Shown

Tee Nuts


We offer all of the common size Tee-Nuts used in Pinball/Arcade/Video games.


6-32 Tee Nuts

8-32 Tee Nuts

10-32 Tee Nuts

5/16 Tee Nuts
(Not Plated)

3/8 Tee Nuts

HDW-TEE-6-32
HDW-TEE-8-32
HDW-TEE-10-32
HDW-TEE-5/16
HDW-TEE-3/8

$0.15ea
$0.15ea
$0.24ea
$0.30ea
$0.54ea

Link Material


Did you ever run accros a broken Flipper or Slingshot link and did not have one in your tool box to replace it? Do you have an unusual Flipper Link that no vendor offers? We are offering the Link material so you can make your own!

This is sold in a strip:
7/8” Wide by 12” Long by 0.093 Thick(3/32”)

MAT-LINK

$1.25ea

Braid Wire


Flexable Braided Wire for E/M Contact Discs.

This is sold by the foot

MAT-BRAID

$0.28Per Foot

MAT-SHIELD


8" length center-to-center of holes (8-9/16" overall), flat

High polish one side, protective covering to be removed.

Thickness 0.042 laser cut

Hole in each end #18 drilll to print...ends rounded.

Gottlieb and others used flat nickel plated shiny metal shields over top of playfield posts to create lanes....before plastic rollover guides came into use. They made an annoyingly large number of them of differing lengths. On a game, they are rusty and don't clean up well or are dented, or both.


We have had made an 8" strip of high polished stainless steel with each end punched and rounded. Width is 5/8". The idea here is to make it long enough that it would serve to make 1 long or 2 shorter shields. The customer would cut, round, and drill the lengths desired but one end is ready to use alreasy.






MAT-SHIELD-01

$6.66

5/16” Black Plastic Standoff /Spacer


A Gottlieb® part used in many different applications. This 5/16” standoff /spacer can be used over a metal playfield post up to a #10 Thread. Also used with circuit boards and ramps!

GTB-A7883

$0.15ea

3/8” Grey Plastic Standoff /Spacer


A Gottlieb® part used in many different applications. This 3/8” standoff /spacer can be used over a metal playfield post up to a #10 Thread. Also used with circuit boards and ramps!

GTB-26563

$0.90ea

3/4” Black Plastic Standoff /Spacer


A Gottlieb® part used in many different applications. This 3/4” standoff /spacer can be used over a metal playfield post up to a #10 Thread. Also used with circuit boards and ramps!

GTB-30006

$0.80ea

1” Black Plastic Standoff /Spacer


A Gottlieb® part used in many different applications. This 1” standoff /spacer can be used over a metal playfield post up to a #10 Thread. Also used with circuit boards and ramps!

GTB-26234

$0.50ea

Commonly Requested Tools Box Parts





Grey Target Foam

Used behind standup target. Sold in lots of 10.

MAT-TARGETFM

$2.50Per Lot

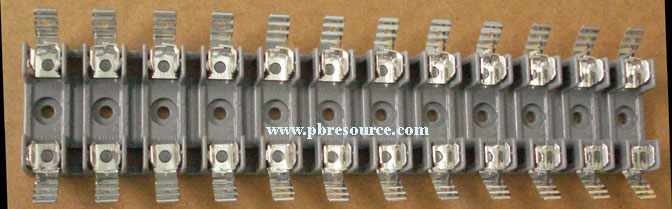

Fuse Holders

A Single/Strip Plastic fuse holder replacement. Holds standard AGC/MDL 1/4” X 1 1/4” size fuses.
These can be ordered individually or in a Strip. The largest Strip we can offer is 12 positions/holders. If ordered in a strip, you pay for the number of holders/positions! Thus a 12 position stip would be $13.20, a 5 position strip would be $5.50.

FUS-HLDR-SNAP

$1.10ea

Fuse Clips Holders

A single fuse clip with a 1/4” ear for printed circuit boards.

FUS-CLIP

$0.22ea

Nylon Gliders

The piece of hardware on EM pinball cabinets that separates the machine from the floor when units are stood on end. These are normally missing on the game.

HDW-GLIDE

$0.25ea

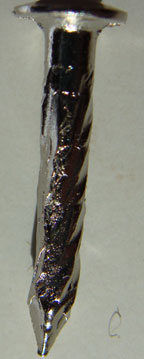

Siderail Nails

The nails used to re-attach the siderails on your game.

GTB-FA-701

$0.18ea

14'Electrical Cord Replacement

Our 3 wire(Grounded) 14' replacement electrical cord. Ideal for most pinball machines.

CORD-SET-14

$6.35ea

Stern / Data East / Sega 10'Electrical Cord Replacement

Stern 3 wire(Grounded) Round 10' replacement electrical cord.
034-5000-10

DE-034-500010

$10.78ea

7.5' PC Style Electrical Cord Replacement

Our replacement 7.5' PC style Electrical Cord fits Williams/Bally 90's games.

W-5850-13271-00

Out of Stock

3/8” Cable Clamp

GTB-MP24

Out of Stock

Cotter Pin

1/16” X 1/2”

GTB-FA645

$0.10ea



Hairpin Clip

GTB-A6947

$0.25ea

Cotter Pin 3/16”

HDW-H-COTTER316

$0.20ea

Disc Solder Tab

Tab for soldering wires to boards – Example

GTB-A4701

$0.20ea

Nylon Thrust Washer

9/16” X 1/4” X .010

Used on multiple applications like Gottlieb® Ball Hole Kickers, Stargate Scissors Assembly, Pivot Gate, etc...

GTB-A6443

$0.30ea

3/4” Cable Tie Mounting Base

Comes with tape installed on the back.

GTB-MP905

$0.25ea

4” Cable Tie


GTB-MP3

$0.20ea


26481 Shown


545-5121-00 Shown


03-8173 Shown

Microswitch Mounting Bracket/Holder

Gottlieb 26481

Data East / Sega / Stern
545-5121-00

Williams
03-8173


GTB-26481

DE-545-512100

WLL-03-8173

$0.50ea

$1.58ea

Out Of Stock

15A On/Off Toggle Switch

Double Pole-Double Throw On/Off switch that can be used on Solid State or E/M games



Fits Gottlieb®:
Plate A18769
Bracket 29626



HDW-ON/OFF





GTB-A18769
GTB-29626

$4.90ea





$2.00ea
$4.00ea

Mylar / Vinyl


By The Foot

This mylar is 27” wide.
Can be used to cover the entire playfield or portions of it!

*Note: Due to the length of this part, it will force Priority Mail shipping, which will be more expensive! We can reduce shipping costs if tell us the exact width you need.


MYLAR-PF

$5.98
Per Foot


Pop Bumper Mylar Non-Adhesive

This clear non- adhesive mylar is meant to protect the area around the pop bumper.

B-8246

$0.75ea






Pop Bumper Mylar Adhesive

This clear adhesive mylar is meant to protect the area around the pop bumper.

MYLAR-POP

$0.86ea

½ Pop Bumper Mylar Adhesive

These are NOS Gottlieb® clear adhesive mylar halves for the Pop Bumper. These Halves are great if you want to add Mylar protection to your pop bumpers without having to dismantle the pop bumper. Since these are Halves, you need to purchase Two to protect a single pop bumper.
Click on the thumbnail to see the actual size.

GTB-25732

Out Of Stock


Ball Drop Mylar

These are small circular (about 1”) adhesive mylar that are normally placed where the ball drops on the playfield to protect it.

GTB-30068

$0.38ea

SlingShot Mylar

These are for protecting the playfield area in front of the slingshots.

MYLAR-DEE

$0.85ea

Drop Target Vinyl Protectors


This part is a re-usable precut adhesive Vinyl to cover the face of your Drop targets!

Whether you are looking to protect your new Hot Stamped Drop Targets, protect the Drop Target Decals you just installed, or want to protect the decals that are no longer available, this tough Vinyl will do the job!

These are sold by the strip, 5 protectors to a strip!

NOTE: If you try to remove these from your drop targets, it may take the hot stamping/decal off of Drop Targets! Remove with Caution!

PRO-DT

Out Of Stock
(5 protectors to a strip)

Batteries and Holders





3.6v Nicad Battery

For use in Bally and Gottlieb® Pinballs

BLY-BAT

$6.15ea





Gottlieb® System 3 Battery

For use in Gottlieb® System 3 Games.

GTB-XO925

$6.00ea





Williams Phenolic Base Battery Holder

A onboard replacement battery holder
for use in Williams Games.

5881-09021-00

$5.45ea





WMS/Bally Plastic Base Battery Holder

A onboard plastic battery holder for
for use in Williams/Bally Games.

A-15814

Not
Currently
Available

Data East / Sega / Stern Plastic Base Battery Holder

A onboard plastic battery holder for
for use in Data East / Sega / Stern Games.

DE-545-5685-00

$7.08ea

Bally Nyliner

C-537-3 Nyliner
*Some Common Uses*
Mad World 4-Steps Free-Ball Assembly
Capersville 4-Steps Free-Ball Assembly

BLY-C537-3

$0.75ea

C-537-5 Nyliner
*Some Common Uses*
Bally Orbit Unit found in Late 60's-Early 70's
Bally 80's Drop Target Assembly ASE-2993
Bally 80's Drop Target Assembly ASE-3038

Use Substitute GTB-29627 listed below

BLY-C537-5 -Not Available – Use Substitute
GTB-29627 Listed Below


C-537-8 Nyliner
*Some Common Uses*
Bally Linear Flipper found on games from 5/80 Rolling Stones through Upper Flippers on Truck Stop 11/88

BLY-C537-8

$1.46ea

C-537-12 Nyliner
*Some Common Uses*
Bally Linear SlingShort found on most Bally 1980's games.

BLY-C537-12

$3.12ea

C-537-22 Nyliner
*Some Common Uses*
Bally Ball Shooter Starting with Amigo 5/1974 through Quarterback 9/1976.

BLY-C537-22

$3.56ea

Gottlieb® Nyliner


GTB-30469

30469 Nylon Bearing 1/8”ID 5/64” LG
*Some Common Uses*
Rescue 911 Helicopter

GTB-30469

$1.10ea


GTB-26946

26946 Nylon Bearing 3/16”ID 5/64” LG
*Some Common Uses*
WipeOut Slalom
Freddy Finger Ball Stop
Big Hurt Shooter Lane Ramp
Big Hurt Scoreboard
LCA Rotating Table

GTB-26946

$1.10ea


GTB-26570

26570 Nylon Bearing 3/16”ID 3/16” LG
*Some Common Uses*
Bonebusters Skull
Big Hurt Pivot Arm

GTB-26570

$1.10ea


GTB-29627

29627 Nylon Bearing 1/4”ID 5/64” LG
*Some Common Uses*
WipeOut! Ski-Lift
World Challenge Soccer Pivot Gate
Stargate Pivot Unit
Mario Andretti Pivot Gate
WaterWorld Pivot Gate

GTB-29627

$1.10ea



GTB-26257

26257 Nylon Bearing 1/4”ID 9/64” LG
*Some Common Uses*
Barbwire Ball Shooter
WaterWorld Ship Assy
Big House Auger
Big House SteelBall Target

GTB-26257

$1.10ea


GTB-26569

26569 Nylon Bearing 1/4”ID 1/4” LG
*Some Common Uses*
WipeOut! Ski-Lift

GTB-26569

$1.25ea


GTB-30055

30055 Nylon Bearing 5/16”ID 5/64” LG
*Some Common Uses*
Gladiators Ball Stop
Mario Andretti Ball Stop
Mario Andretti Pivot Post
Barbwire Lens Assembly

GTB-30055

$1.10ea


GTB-32078

32078 Nylon Bearing 7/16”ID 9/64” LG

GTB-32078

$1.10ea


GTB-26571

26571 Nylon Bearing 7/16”ID 7/16” LG
*Some Common Uses*
BoneBusters Skull

GTB-26571

$3.30ea

Stern / Data East / Sega Nyliner

545-5352-00 3/16” Nyliner
*Some games used on*
Jurassic Park The Lost World
Viper
Wheel Of Fortune

DE-545-535200

Out Of Stock

545-5418-01 Nyliner
7/16” Shaft
*Some games used on*
Pirates of the Carribean
The Sopranos
Wheel of Fortune

DE-545-541801

$6.52ea

545-5423-00 Nyliner 1/4”
*Some games used on*
Casino
Elvis
Last Action Hero
Pirates of the Carribean
The Sopranos
Wheel of Fortune

Use Substitute GTB-29627 listed above

DE-545-542300

Out of Stock

Use Substitute GTB-29627 listed above

545-5485-00 Nyliner
*Some games used on*
Apollo 13
The Simpsons
Wheel of Fortune

DE-545-548500

$2.38ea

Williams/Bally Nyliners

20-8790 Nyliner 1/4”
Also listed in parts catalog as 20A8790 and 20A-8790


Use Substitute GTB-29627 listed above

WLL-20-8790

Out of Stock

Use Substitute GTB-29627 listed above

20-8790-1 Nyliner 3/16”
*Some games used on*
Bram Stoker's Dracula
Doctor Who
Fun House
Road Show
Scared Stiff
Who Dunnit

WLL-20-8790-1

Out of Stock

20A8790-4 Nyliner
*Some games used on*
Double Play Baseball(Ball Shooter Unit)

WLL-20-8790-4

On Special

20-8790-5 Nyliner 1/2”
*Some games used on*
Champion Pub
No Good Gofers
Pinball Circus

WLL-20-8790-5

$1.08ea

20-8790-6 Nyliner 3/8”
*Some games used on*
Popeye

WLL-20-8790-6

Out of Stock

20-8790-7 Nyliner 1/4”
*Some games used on*
League Champ
Party Zone
Radical
Shuffle Inn / Deluxe
Shuffle Master / Deluxe

WLL-20-8790-7

Out of Stock

20-8790-8 Nyliner
*Some games used on*
Space Pilot

WLL-20-8790-8

$1.85ea

20-8790-9 Nyliner
*Some games used on*
Gilligan's Island

WLL-20-8790-9

$0.68ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2017 The Pinball Resource
