Bally Flipper Rebuild Kit KT-BFLIP04 Detailed Listing of parts with non-kitted parts.

Parts Found in the Mini Kit
KT-BFLIP04M

Parts Found in the Complete Kit
KT-BFLIP04

Parts Not Found in Kit
KT-BFLIP04
or
KT-BFLIP04M

Bally Mini Kit Parts KT-BFLIP-04M

Flipper Plunger

2 Flipper Plungers S-496-217 included in Kit
KT-BFLIP-04M

BLY-S496-217+ $3.87ea

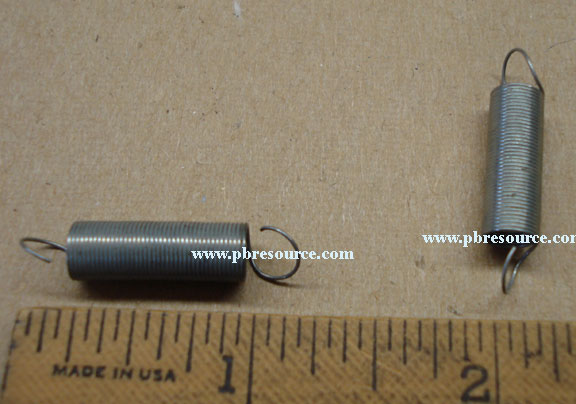

Return Spring

2 Return Springs SP-100-363
included in Kit
KT-BFLIP-04M

BLY-SP100-363 $0.56

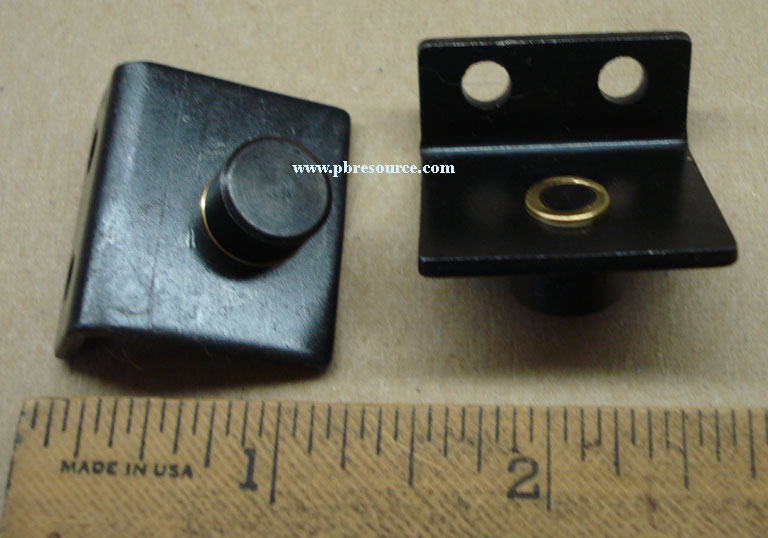

Coil Stop

2 Enhanced Coil Stops A-613-127 included in Kit
KT-BFLIP-04M

BLY-A613-127+ $4.50ea

Flipper Bearing

2 Flipper Bearings C-537-8
included in Kit
KT-BFLIP-04M

BLY-C537-8 $1.46ea

Flipper Bushing

2 Flipper Bushings C649-53 included in Kit
KT-BFLIP-04M

BLY-C649-53 $2.13ea

Coil Sleeve

2 Coil Sleeves included in Kit
KT-BFLIP-04M

SLEEVE-BLY-STD $0.45ea

Spring Washer

2 Spring Washer FA605 (Substitute for P-1158-6) included in Kit
KT-BFLIP-04M

GTB-FA605+ $0.26ea

EOS Switch
(High Current)

2 End Of Stoke(EOS) Switches ASW-A20-34 included in Kit
KT-BFLIP-04M

BLY-ASWA2034+ $4.10ea

Screws

4 Screws 8-32-1/4 included in Kit KT-BFLIP-04M

HDW-8-32-1/4 $0.25ea

Bally Complete Kit Parts KT-BFLIP-04
In Addition to the parts from the Mini kit listed above, the complete kit also includes the following

Right Hand Side Lever Assembly

1 Enhanced Right Hand Side Lever Assembly included A-3711-5

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

BLY-A3711-5E $11.75ea

Left Hand Side Lever Assembly

1 Enhanced Left Hand Side Lever Assembly included A-3711-4

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws -These screws are larger than the originals and will not work on original lever arms.

BLY-A3711-4E $11.75ea

Allen Wrench

For the 4 FA90 10-32 X 3/8” Socket Head Cap Screws listed above included in Kit
KT-BFLIP-04


Parts NOT Found in Kit
KT-BFLIP-04






Flipper Coils

Varies by game – see your game Manual/Schematic for which ones are used in your game.

Coils we offer are listed here.


EOS Form A Switch

If your game has more than two flippers, the Upper Flippers are probably powered by a EOS FORM A Switch. Look at your game and see if your lower flippers have a stacked switch like AS-982-588.

The stacked switch is a sandwich of the
BLY-ASWA2034+ EOS switch listed above and this EOS FORM A Switch ASWA-10-45.

The ASWA-10-45 is a high current switch.



BLY-ASWA1045+ $4.19ea

Lane Change Switch

If your game has a stacked EOS and the second EOS switch is low current switch, its probably a Lane Change Switch. This is the switch the moves the light for the A,B,C Lanes when the flipper button is pushed.


On a High Current switch, the contact is almost as wide as the blade, on a low current switch, the contact is about half the width of the blade.


We offer a substitute for the Lane Change Switch
SW1A-150.

WLL-SW1A-150+ $2.79ea


BLY-ASWA2013+ Shown


BLY-ASW-A20-36 Shown


BLY-ASW-A20-37 Shown

Zipper Flipper
EOS Switches


ASW-A20-12 & ASW-A20-13
EOS Switches replaced by BLY-ASWA2013+

Left EOS Stacked Switch
ASW-A20-36

Right EOS Stacked Switch
ASW-A20-37

BLY-ASWA2013+ $3.00ea
BLY-ASWA20-36 $3.60ea
BLY-ASWA20-37 $3.60ea

Left Hand Flipper Stop Bracket


LHS Flipper Stop Bracket P-6665-636

BLY-P6665-636 $2.42ea

Right Hand Flipper Stop Bracket


RHS Flipper Stop Bracket P-6665-637

BLY-P6665-637 $2.42ea

Switch Bracket


RHS Flipper Stop Bracket (Bracket from Assembly ASE-982-1286)

BLY-P137-SB Out of Stock

Flipper Plastics and Shoe and Shaft Assemblies


Can be seen Here


Flipper Rubber


Can be seen Here
