® Late System 80B EOS Switches and Flipper Parts


Click on above picture to see an exploded view

EOS Switches by Game
Amazon Hunt II
Arena
Victory
Diamond Lady
TX-Sector
Big House
Robo-War
Excalibur
Bad Girls
Hot Shots
Night Moves
MA988
MA989

List of late System 80B Flipper Parts


Amazon Hunt II EOS Switches

Left and Right EOS Switch
(Both the same on this game)

25434

GTB-25434 $4.55ea

Arena EOS Switches

Left EOS Switch


25434

GTB-25434 $4.55ea

Right EOS Switch


25435

GTB-25435 $8.00ea

Victory EOS Switches

Left EOS Switch


25743

GTB-25743 $5.20ea

Right EOS Switch


25434

GTB-25434 $4.55ea

Diamond Lady EOS Switches

Left EOS Switch


25743

GTB-25743 $5.20ea

Right EOS Switch


25435

GTB-25435 $8.00ea

TX-Sector EOS Switches

Left EOS Switch


25743

GTB-25743 $5.20ea

Right EOS Switch


25435

GTB-25435 $8.00ea

Upper Left EOS Switch

25743

GTB-25743 $5.20ea

Big House EOS Switches

Left EOS Switch


26432

GTB-26432+ $10.20ea

Right EOS Switch


26433

GTB-26433+ $10.20ea

Robo-War EOS Switches

Left EOS Switch


25743

GTB-25743 $5.20ea

Right EOS Switch


25435

GTB-25435 $8.00ea

Excalibur EOS Switches

Left EOS Switch

26057

GTB-26057+ $10.20ea

Right EOS Switch

26056

GTB-26056 $11.00ea

Upper Left EOS Switch

26059

GTB-26059+ $9.00ea

Upper Right EOS Switch

26058

GTB-26058+ $9.00ea

Bad Girls EOS Switches

Left EOS Switch


26059

GTB-26059+ $9.00ea

Right EOS Switch


26058

GTB-26058+ $9.00ea

Upper Right EOS Switch


26056

GTB-26056 $11.00ea

Hot Shots EOS Switches

Left EOS Switch

26057

GTB-26057+ $10.20ea

Right EOS Switch

26056

GTB-26056 $11.00ea

Night Moves EOS Switches

Left EOS Switch

26432

GTB-26432+ $10.20ea

Right EOS Switch

26433

GTB-26433+ $10.20ea

MA-988 EOS Switch

Field Conversion Kit for Single EOS Switches for System 80, 80A, and early 80B games.

EOS Switch


25436

GTB-25436 $4.55ea

MA-989 EOS Switch

Field Conversion Kit for Dual EOS Switches for System 80, 80A, and early 80B games.

EOS Switch


25437

GTB-25437 $8.60ea

Late System 80B Flipper Parts

Flipper Plunger Assembly

Flipper Plungers + Tip Assembly A16360

If your current plunger has a Tail, this was the original Gottlieb® design. This design was supposed to avoid plunger hangups. It turned out that the tail caused more hangups than it cured. Gottlieb® later removed the tail to correct the problems it was causing. Thus the above plunger is the correct replacement part for your tailed plunger.

GTB-A16360+ $3.34ea

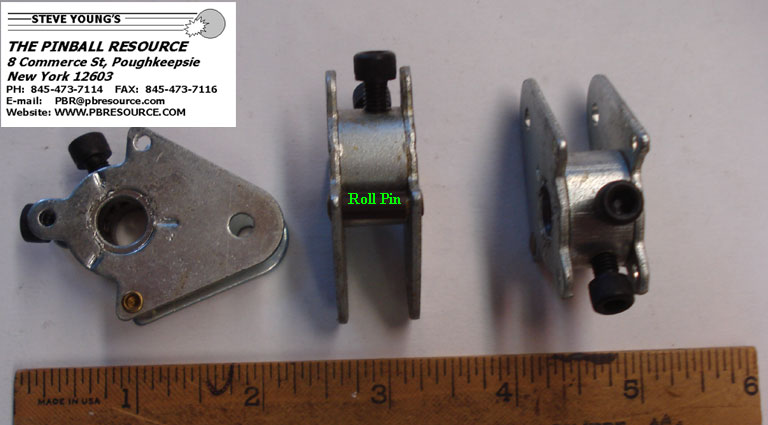

Flipper Lever Arm
with Roll-Pin


25402





GTB-25402 $4.90ea


Flipper Lever Arm
with Roll-Pin and Plunger Assembly


25425

GTB-25425 $8.47ea

Coil Stop Assembly

A-17908

GTB-A17908+ $4.50ea

Coil Sleeve

Coil Sleeves
A5064

SLEEVE-GTB-STD $0.45ea

Return Spring
A779



Substitute for Compression Spring 25735

GTB-A779 $0.45ea

Bushing/Bearing Top
A15529

GTB-A15529 $1.21ea

Bushing/Bearing Bottom
A17565

GTB-A17565 $1.24ea

Screw
8-32x3/8 HWHMS-SEMS

FA69

3 used on each Bushing/Bearing Tops

GTB-FA69 $0.15ea

Screw
8-32 x 1/4 HWHMS-SEMS

FA64

3 used on each Bushing/Bearing Bottoms

GTB-FA64 $0.25ea

Screw

Screws 8-32-3/8” Socket Head Cap Screw

FA71

2 used on each Coil Stop




GTB-FA71 $0.20ea

Screw

Screws 10-32-3/8” Socket Head Cap Screw


2 used per Lever Arm


GTB-FA90 $0.20ea

Spring Washer
FA605

2 Used per flipper

GTB-FA605+ $0.26ea

Flipper Coils

Flipper Coils are Game Specific. See your game manual / schematic for the correct flipper coil.

There coils we offer are listed here.



Right Baseplate

25392

(Switch Bracket is 13/16” tall)


GTB-25392 $9.90ea

Left Baseplate

25397

(Switch Bracket is 13/16” tall)

GTB-25397 $9.90ea

Bearing Bracket

C15528

GTB-C15528 $2.40ea

Coil Loop Bracket

A16356

GTB-A16356+ $0.98ea

Flipper Plastics and Shoe and Shaft Assemblies


Can be seen Here


Flipper Rubber


Can be seen Here
