Gottlieb® Flipper Rebuild Kit KT-GFLIP04 Detailed Listing of parts with non-kitted parts.

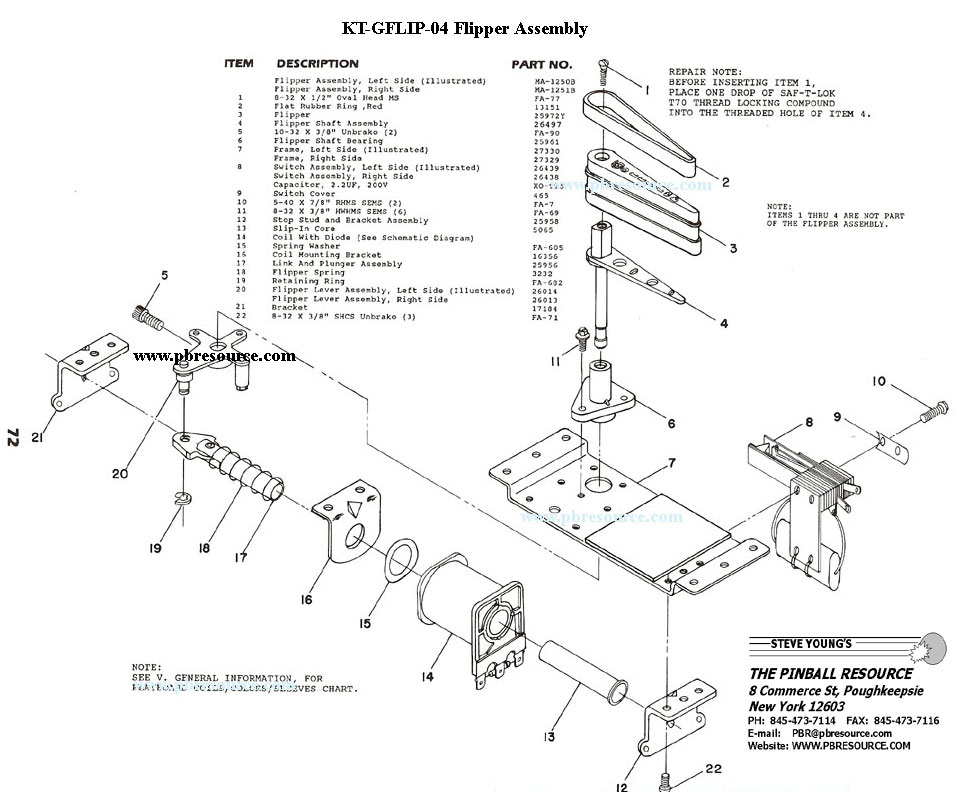

Click on above picture to see an exploded view

Parts Found in the Mini Kit
KT-GFLIP04M

Parts Found in the Complete Kit
KT-GFLIP04

Parts Not Found in Kit
KT-GFLIP04
or
KT-GFLIP04M

Gottlieb® Mini Kit Parts KT-GFLIP-04M

Flipper Plunger Assembly

2 Flipper Plungers/Link Assemblies 25956 included in Kit KT-GFLIP-04M

GTB-25956+ $3.90ea

Coil Stop Assembly

2 Coil Stop Assemblies 25958 included in Kit KT-GFLIP-04M

GTB-25958+ $4.50ea

Compression Spring

2 Compression Springs A3232 included in Kit KT-GFLIP-04M

GTB-A3232 $0.45ea

Spring Washer

2 Spring Washers FA605 included in Kit KT-GFLIP-04M

GTB-FA605+ $0.26ea

Flipper Bushing/Bearing

2 Flipper Bushing / Bearings 25961 included in Kit
KT-GFLIP-04M

GTB-25961 $0.65ea

Coil Sleeve

2 Coil Sleeves A5065 included in Kit KT-GFLIP-04M

SLEEVE-A5065 $0.45ea

3/16” C-Ring
2 3/16” C-Rings FA682 included in Kit KT-GFLIP-04M

HDW-CRING316 $0.15ea

Screws

6 Screws 8-32-3/8” Socket Head Cap Screw FA71 included in Kit KT-GFLIP-04M

GTB-FA71 $0.20ea

Lock Washer

6 Lock Washers #8 FA635 included in Kit KT-GFLIP-04M

GTB-FA635 $0.10ea

Allen Wrench

For the 6 FA71 8-32 X 3/8” Socket Head Cap Screws listed above included in Kit KT-GFLIP-04M


Gottlieb® Complete Kit Parts KT-GFLIP-04
In Addition to the parts from the Mini kit listed above, the complete kit also includes the following

Right Hand Side Lever Arm Assembly

1 Right Hand Side Lever Arm Assembly 26013 included in Kit KT-GFLIP-04

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws

GTB-26013+ $12.00ea

Left Hand Side Lever Arm Assembly

1 Left Hand Side Lever Arm Assembly 26014 included in Kit KT-GFLIP-04

Includes 2 FA90 10-32 X 3/8” Socket Head Cap Screws

GTB-26014+ $12.00ea

Left EOS Switch
1 Left End Of Stoke(EOS) Switch 26439 included in Kit
KT-GFLIP-04

GTB-26439+ $10.20ea

Right EOS Switch
1 Right End Of Stoke (EOS) Switch 26438 included in Kit
KT-GFLIP-04

GTB-26438+ $10.20ea

Allen Wrench

For the 4 FA90 10-32 X 3/8” Socket Head Cap Screws listed above included in Kit
KT-GFLIP-04


Parts NOT Found in Kit
KT-GFLIP-04

Left EOS Switch Assembly With Lane Change
26436

GTB-26436+ $10.00ea

Right EOS Switch Asssembly with Lane Change

26437

GTB-26437+ $10.00ea

Flipper Coils

We offer different strength versions of this Flipper coil.

There coils we offer are listed here.



Stop Bracket

A17184

GTB-A17184+ $2.16ea

Coil Mounting Loop

A16356

GTB-A16356+ $0.98ea


BasePlates

Original Silver colored Baseplates 27328 and 27329 are No Longer Available.
You can use our substitute Black Base Plates 29158 and 29157 if you upgrade to Coil Stop 29154(1 Per Flipper) and order FA90 screws(3 Per Flipper) and 3 Lock Washer 4701-00004-00 to attach the stop to the baseplate.



Substitute Parts
GTB-29157 $8.80ea
GTB-29158 $8.80ea
GTB-29154 $4.50ea
GTB-FA90 $0.20ea

Capacitor 2.2MF 250Volt

If you need the flipper Capacitor only and not the complete flipper EOS assembly offered in the kit, we also offer the Capacitor by itself
X0995

CAP-2.2MF250V $2.21ea

Flipper Link

If you need the flipper link only and not the Plunger/Link assembly offered in the kit, we also offer the link by itself
31941 (Replaces 27556)

GTB-31941+ $1.14ea

Flipper Plastics and Shoe and Shaft Assemblies


Can be seen Here


Flipper Rubber


Can be seen Here
