The Pinball Resource

Lockdown Bars and Accessories Webpage

Gottlieb®

Williams/Bally

Stern


Gottlieb®

Single Player Reproduction Wood Lockdown Bar with Threaded Posts

These are reproduction wood lockdown bars(Front Moulding Assembly) with threaded posts for Single Player games.

This lockdown has a 1/4" wood rib that fits a 1/4" slot in the top edge of the cabinet front. The carriage bolts are mounted to 2 separate mounting plates screwed to the underside of the bar.

These are made of Maple, ready for finish sanding, any staining, and finish desired. Complete with 2 carriage bolts and 2 wing nuts. The bar is shipped assembled. You will likely disassemble to complete the finishing work. This bar has taken 2 vendors plus my personal shop to complete. There are 18 operatons alone to make the wooden part of the bar; add to that the operations to fabricate the mounting plates/channel and then to assemble the bar, and you see why this is the first production we have been able to do since the 1980's. Most of the wood shops we have approached have declined to even quote the part.

This lockdown bar is used on:
~1947 ~ 1954 Games

GTB-SA19 Out of Stock

Single PlayerReproduction Wood Lockdown Bar with Threaded Posts and Metal Channel

These are reproduction wood lockdown bars(Front Moulding Assembly) with threaded posts and a sheet metal channel for Single Player games.

This lockdown fits a much thinner slot in the top of the cabinet front than the GTB-SA19 listed above.

These are made of Maple, ready for finish sanding, any staining, and finish desired. Complete with 2 carriage bolts and 2 wing nuts. The bar is shipped assembled. You will likely disassemble to complete the finishing work. This bar has taken 2 vendors plus my personal shop to complete. There are 18 operatons alone to make the wooden part of the bar; add to that the operations to fabricate the mounting plates/channel and then to assemble the bar, and you see why this is the first production we have been able to do since the 1980's. Most of the wood shops we have approached have declined to even quote the part.



This lockdown bar was generally used on:
~1954 ~ 1960 Games

GTB-D1008 Out of Stock




Reproduction Small End Caps

These reproduction small End Caps are made to replace the ones on the end of the lockdown bar for Gottlieb® games from production Flipper (1960) ~ Dancing Lady(1966). Gottlieb® produced multiple sizes end caps during this time, these are the small endcaps, click on the thumbnail and validate the size to make sure they will fit your game! Part GTB-A6026-7A

The pair of End Caps ships with 4 X
HDW-3/16-CLIP clips for installing.

GTB-A6026-7A
$59.32 Per Pair





If you want additional clips,
HDW-3/16-CLIP $0.15ea

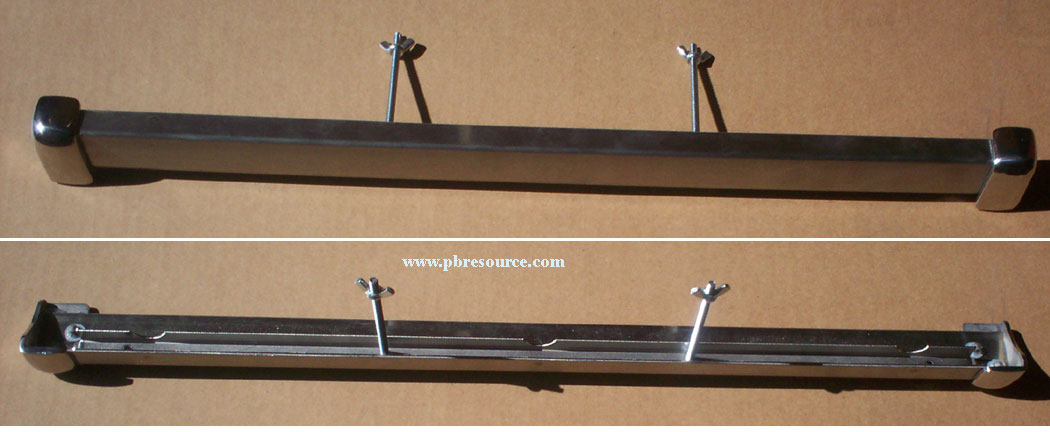

Reproduction Lockdown Bar with Threaded Posts and End Caps

These are reproduction lockdown bars(Front Moulding Assembly) with threaded posts and the End Caps already installed. This is used on games with the smaller
coin door(
GTB-C4537A )!

This lockdown bar is used on:
~1960 Flipper - ~ 1963 Prototype Slick Chick

GTB-D6031A
-Please Call to discuss condition of these replacement lockdown bars, ask for Steve.

Reproduction Lockdown Bar with studs and End Caps

These are reproduction lockdown bars(Front Moulding Assembly) with studs and the End Caps already installed. This is used on games with the larger coin door(GTB-D10066A)!

This lockdown bar is used on:
~1963 Production Slick Chick - ~ 1966 Dancing Lady

If you need the Screw for Lockdown Bar D7446A, it's A7408A $2.22ea

GTB-D7446A
Out of Stock








GTB-A7408A $2.22ea






Reproduction Lockdown Bar

These are reproduction lockdown bars(Front Moulding Assembly).
They are a single piece, flat bar!

This lockdown bar can be used as:

~1967 King Of Diamonds - ~1971 Four Square
A replacement for Gottlieb® games. Note - this will change the look of the game versus the welded on end caps!

~1971 Astro - ~ 1976 Surfer
An exact reproduction!

NOTE: These bars are held in place by buttons(Included with bar). Please ensure your current lockdown bar has the buttons on the bottom(Not Tabs – See Below!) Click on thumbnail for full view!


Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot
(Not Included)!

GTB-D14008A
Out Of Stock







Lockdown Moulding Slide / Receiver 24993 Shown


Lockdown Moulding Slide / Receiver 26319 Shown


NOS Standard Width Tabbed Lockdown Bar ~1976 Target Alpha –
Barb Wire 1996

These NOS standard width lockdown bars(Front Moulding Assembly) fit games from about Target Alpha (Recessed Front Door) through the last Gottlieb® game. These are held in place by tabs. Click on thumbnail for full view!

Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot(Not Included)!

Lockdown Moulding Slide /Receiver 24993 $40.00ea
Starts with Raven through Big House
For games with B-8835, 25879, and 26029 Shooter Assemblies

Lockdown Moulding Slide/Receiver 26319 $40.00ea
Starts with Bone Busters through Barb Wire
For games with 26314, 26314A, 26314B, 26314C, 31009, 32107 Shooter Assemblies

GTB-D16951 Out of Stock

GTB-24993 $40.00ea

GTB-26319 $40.00ea



Lockdown Bar D18778


Lockdown Receiver D18775

NOS Mid-body Width Tabbed Lockdown Bar

These NOS mid-body lockdown bars(Front Moulding Assembly) fit games like Haunted House and Black Hole. These are 26” long!
These are NOS but are NOT mint. These do have some scratches, that may clean up with some sand paper. They do have a seam in the middle!

This Mid-Body Width Bar takes Lockdown Receiver Assembly D18775
This bar is 25-1/4” long – Measure your receiver to ensure this is the length you need

GTB-D18778 -Out Of Stock



GTB-D18775 Out of Stock


Bally/Williams

Part

Description

Part Number / Price

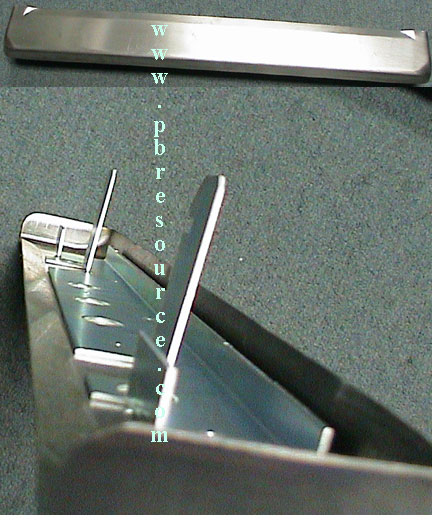

Standard Size Stainless Lockdown Bar

Williams: Fits standard size games from 1966 Full House – 1998 Monster Bash

Bally: Fits standard size games from 1989 Atlantis - 1999 Cactus Canyon

Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot(Not Included)!

#WLL-A18240 Out of Stock

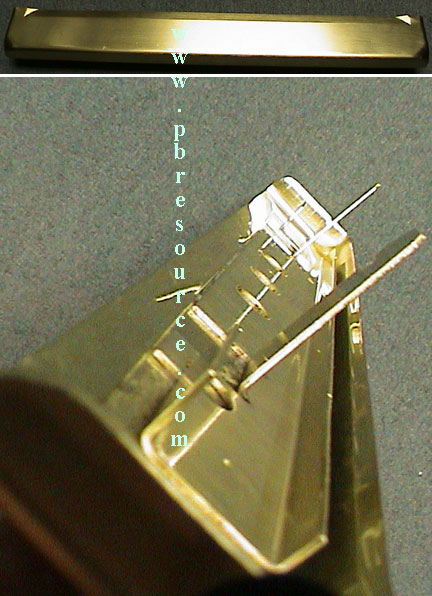

Standard Size Commercial Brass Plating with Clear Powder Coat Lockdown Bar

Williams: Fits standard size games from 1966 Full House – 1998 Monster Bash

Bally: Fits standard size games from 1989 Atlantis - 1999 Cactus Canyon


Lockdown Bar takes 2 feet of #BeerSeal $1.18 Per Foot(Not Included)!

#WLL-A18240-4
Not Currently Available




Widebody Stainless Lockdown Bar

Williams/Bally: Fits widebody games from 1990's

Lockdown Bar takes 3 feet of #BeerSeal $1.18 Per Foot(Not Included)!


Not
Currently
Available

Stern

Standard Size Black Lockdown Bar

Without Hole!
Stern Replacement for 500-5757-01, 515-7495-00, and 500-6882-02-00
(We can order any Lockdown bar Stern Offers)!

*NOTE: Will not fit Austin Powers!

#DE-500-6882-02-00
Out of Stock
