Shooter Rod Assemblies and Associated Parts

Allied Leisure

Atari

Brunswick / Briarwood

Bally
1961-1974 Sky Kings
1974 Amigo-1975 Knockout
1975 Wizard!-1977Night Rider
1977 Black Jack-1983 Centaur II
1983 Grand Slam-1987 Escape from the Lost World

Chicago Coin / Old Stern

Common Substitute Parts

Can't find your game/manufacturer listed on this page, see the common substitute we suggest those games

Data East / Sega / Stern

Gottlieb®
Mid 50's-1964 Happy Clown
1965 Sky-Line-1988 TX-Sector
1988 Robo-War-1989 Big House
1989 Bone Busters-1996 Barb Wire

International Concepts Cocktail Tables
Night Moves and Caribbean Cruise

Playmatic

Williams
1965-1973 Swinger
1973 Travel Time-1997 No Good Gofers



Allied Leisure

Black Plastic Knob
Shooter Rod


Used on cocktail games like Star Shooter

307-1-15

ALI-307-1-15 Out of Stock

Black Plastic
Plunger Housing


Used on cocktail games like Star Shooter

264-5-33

ALI-264-5-33 $2.33ea

Atari (Used on games like Superman)

Click on the above picture to see what parts we can offer for the assembly

Shooter Rod


A004874-01

ATA-A004874-1 Out of Stock

Barrel Spring

Substitute for
004763-01

GTB-A347 $0.72ea

Shooter Spring

Substitute for
004764-01

GTB-A348 $0.88ea

Washer

Substitute for
75-0720

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
006113-01

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 73-3006

HDW-CRING38 $0.20ea

Brunswick / Briarwood Home Model Games

Ball Shooter Assembly

55-860227-00

K-55860227000 $16.00ea

Bally 1961 – 1974 Sky Kings


Click on the above picture to see what parts we can offer for the assembly

Part

Description

Part/Price

Barrel Spring

Substitute for
SP-247

GTB-A347 $0.72ea

Shooter Spring

Substitute for
SP-200-24

GTB-A348 $0.88ea

Spring Cup

P-2879

BLY-P2879 Out of Stock

Washer

Substitute

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
R-108-3
R-108-4
*NOTE: If you shooter rod is reduced at the end, you will need to make it the same diameter as the shooter rod with something like electrical tape.

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for P2891-8

HDW-CRING38 $0.20ea

Bally 1974 Amigo – 1975 Knockout

Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

Substitute for
SP-247

GTB-A347 $0.72ea

Shooter Spring

Substitute for
SP-200-24

GTB-A348 $0.88ea

Spring Cup

P-2879

BLY-P2879 Out of Stock

Washer

Substitute

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
R-108-3
R-108-4

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for P2891-8

HDW-CRING38 $0.20ea

Guide Assembly


We offer this part USED only

BLY-A1540-4 Out of Stock

Nyliner


C537-22

BLY-C537-22 $4.86ea

Bally 1975 Wizard! – 1977 Night Rider


Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

Substitute for
SP-247

GTB-A347 $0.72ea

Shooter Spring

Substitute for
SP-200-24

GTB-A348 $0.88ea

Spring Cup

P-2879

BLY-P2879 Out of Stock

Washer

Substitute

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
R-108-3
R-108-4

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for P2891-8

HDW-CRING38 $0.20ea

Guide Assembly


We offer this part USED only

BLY-A1540-4 Out of Stock

Nyliner


C537-22

BLY-C537-22 $4.86ea

Shooter Rod


Substitute (With Pointed Knob)

BLY-A100-15 Out of Stock

Bally 1977 Black Jack – 1983 Centaur II


Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

Substitute for
SP-247

GTB-A347 $0.72ea

Shooter Spring

Substitute for
SP-200-24

GTB-A348 $0.88ea

Washer

Substitute

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
R-108-3
R-108-4

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for P2891-8

HDW-CRING38 $0.20ea

Shooter Rod


With Pointed Knob
A100-15


*NOTE: Bally used two different shooter rods during this time. The Pointed Knob Rod is shorter, 8-1/4” long including the pointed knob, shaft length 7-1/2”.
If your rod is longer, see A100-7 below.


BLY-A100-15 Out of Stock

Shooter Rod


*NOTE: Bally used two different shooter rods during this time. The Smooth Knob Rod is longer, 8-1/2” long including the knob, shaft length 7-3/4”.
If your rod is shooter, see A100-15 above.


BLY-A100-7 Out of Stock

Bally 1983 Grand Slam – 1988 Escape From the Lost World


Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

Substitute for
SP-247

GTB-A347 $0.72ea

Shooter Spring

Substitute for
SP-200-24

GTB-A348 $0.88ea

Washer

Substitute

GTB-A5246 $0.45ea

White Rubber Plunger Tip

Substitute for
R-108-3
R-108-4

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for P2891-8

HDW-CRING38 $0.20ea

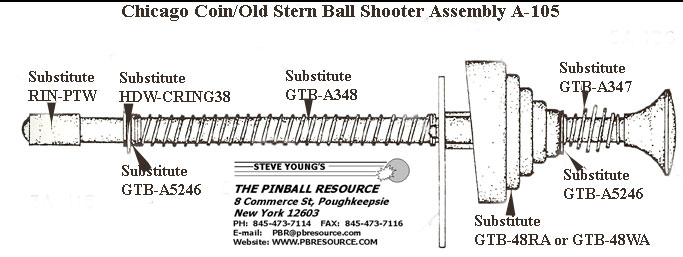

Chicago Coin / Old Stern

Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

Substitute for 5A-136

GTB-A347 $0.72ea

Shooter Spring

Substitute for 5A-137

GTB-A348 $0.88ea

White Rubber Plunger Tip

Substitute for
7A-122

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 17A-104-37

HDW-CRING38 $0.20ea


GTB-48RA Shown


GTB-48WA Shown


Substitute Beehive Housing

Offered in Red and White

This substitute Beehive housing is self sleeved, no additional sleeve required/used.

Comes with 2 mounting screws

Substitute for 4A-115-W and 4A-115-R




GTB-48RA $7.60ea

GTB-48WA $7.60ea

Washer

Substitute for 3A-115
(2 Used per Assembly)

GTB-A5246 $0.45ea

Plunger Mounting Plate

1A-233

CCM-1A233 -Out of Stock

Common Substitute Parts

Can't find your game/manufacturer listed on this page, see the common substitute we suggest those games


GTB-48RA Shown


GTB-48WA Shown


Substitute Beehive Housing

Offered in Red and White

This substitute Beehive housing is self sleeved, no additional sleeve required/used.

This fits 3/8” diameter shooter rods. It will not fit early Williams 5/16” shooter rods.


Used on most woodrails and early E/M games

Comes with 2 mounting screws






GTB-48RA $7.60ea

GTB-48WA $7.60ea

Barrel Spring

Substitute Standard Barrel Spring

GTB-A347 $0.72ea

Shooter Spring

Substitute Standard Shooter Spring

GTB-A348 $0.88ea

Washer

Substitute Standard Washer

GTB-A5246 $0.45ea

Rubber Plunger Tip

Standard Plunger Tips


White – RIN-PTW

Black - RIN-PTB

RIN-PTW $0.30ea

RIN-PTB $0.39ea

C-RING 3/8”



Substitute Standard 3/8” C-Ring

HDW-CRING38 $0.20ea

Data East / Sega / Stern

Black Plastic Knob
Shooter Rod

530-5023-00

Total Length is 8-1/2”, shaft is 7-3/4”

DE-530-502300 $12.60ea

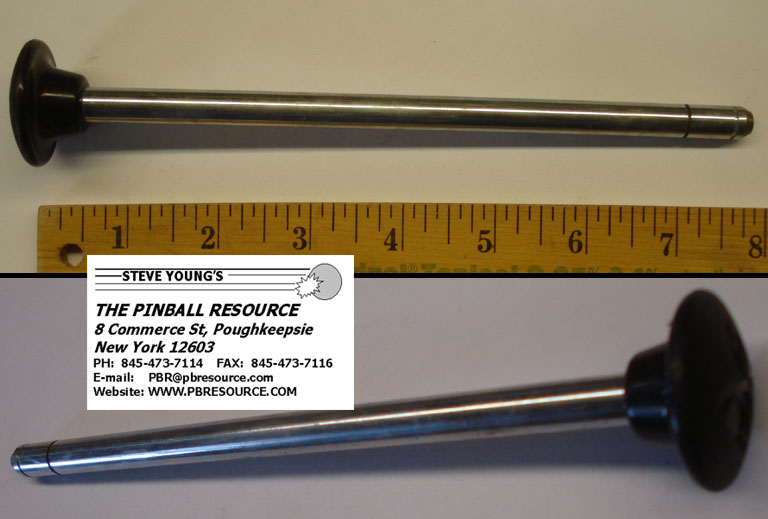

Black Plastic Knob
Shooter Rod

515-5348-00

Total Length is 8”, shaft is 7-1/4”

DE-515-534800 Out of Stock

Red Plastic Knob
Shooter Rod

515-5348-02

Total Length is 8”, shaft is 7-1/4”

DE-515-534802 Out of Stock

Black Plastic Knob
Shooter Rod

515-5924-00

Total Length is 8-5/8”, shaft is 7-3/4”

DE-515-592400 Out of Stock

Black Plastic Knob
Shooter Rod

515-6557-00

Total Length is 8-3/8”, shaft is 7-5/8”

DE-515-655700 $19.26ea

Black Metal
Data East
Shooter Housing


535-5067-00

DE-535-5067-00 – Out of Stock

Black Metal
Shooter Housing


535-5067-02

This housing has replaceable Oilite Brass Bushings(See Below) which are included/installed in this assembly.

DE-535-5067-02 $31.50ea

Oilite Brass Shooter Bushing


280-5010-00

Used in housing 535-5067-02 shown above.

DE-280-5010-00 $4.20ea

Barrel Spring

266-5010-00

DE-266-501000 $4.20ea


Shooter Spring
Purple

266-5001-00

DE-266-500100 -Out of Stock


Shooter Spring
Red

266-5001-02

*Previously 266-5001-06

Can use Stern substitute
266-5001-04

DE-266-500102 -Out of Stock


Shooter Spring
Black

266-5001-03

DE-266-500103 -Out of Stock

Shooter Spring
Green

266-5001-04

Substitute for:
266-5001-02
266-5001-06

DE-266-500104 $2.10ea

Shooter Spring
Blue

266-5001-05

Hook uses
266-5001-03
(Error in Game Manual)

DE-266-500105 Out of Stock


Shooter Spring
Yellow

266-5001-06

Can use Stern substitute
266-5001-04

DE-266-500106 -Out of Stock

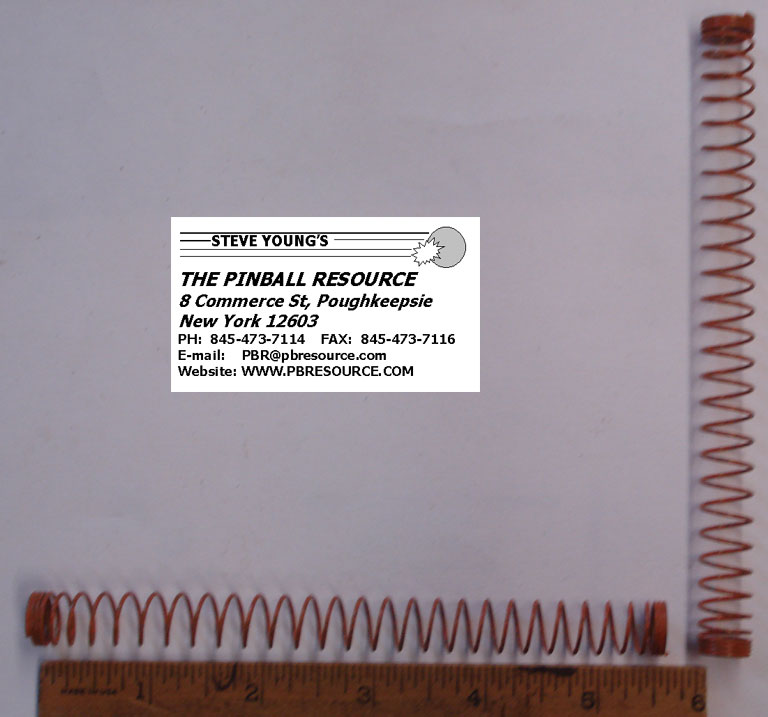

Shooter Spring
Orange

266-5001-07

DE-266-500107 $7.00ea


Shooter Spring
Silver (One end Red)

266-5001-08

DE-266-500108 -Out of Stock


Shooter Spring
Silver

266-5001-09

DE-266-500109 Out of Stock

Washer

Substitute for 242-5014-00

GTB-A5246 $0.45ea

Rubber Plunger Tip

Substitute for
545-5276-00,
545-5027-00,
545-5027-02


White – RIN-PTW

Black-RIN-PTB

RIN-PTW $0.30ea

RIN-PTB $0.39ea

Gottlieb® Mid 50's – 1964 Happy Clown

Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

A-347

GTB-A347 $0.72ea

Shooter Spring

A-348

GTB-A348 $0.88ea

White Rubber Plunger Tip

Substitute for
1872

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 5133-37

HDW-CRING38 $0.20ea


GTB-48RA Shown


GTB-48WA Shown


Substitute Beehive Housing

Offered in Red and White

This substitute Beehive housing is self sleeved, no additional sleeve required/used.

Comes with 2 mounting screws




GTB-48RA $7.60ea

GTB-48WA $7.60ea

Plunger Housing Plate

A-8829

Substitute for A-683

GTB-A8829 $2.08ea

Ball Shooter Plunger /
Shooter Rod

A-5920 – 9” Long-Used on most Single Player games

A-6098 9-5/8” Long -Used on some multi-player games

A-5921 10-3/4” Long -Used on some multi-player games

GTB-A5920+ $15.48ea

GTB-A6098 -Not Currently Available

GTB-A5921 -Not Currently Available

Gottlieb® 1965 Sky-Line – 1988 TX-Sector
Shooter Assembly B-8835

Click on the above picture to see what parts we can offer for the assembly

Complete Assembly

B-8835

GTB-B8835+ $40.06ea

Barrel Spring

A-347

GTB-A347 $0.72ea

Shooter Spring

A-348

GTB-A348 $0.88ea

White Rubber Plunger Tip

Substitute for
1872

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 5133-37

HDW-CRING38 $0.20ea

Plunger Housing Plate

A-8829

Substitute for A-683

GTB-A8829 $2.08ea

Eyelet

A-17596

GTB-A17596 $0.25ea

Acorn 10-32 Elastic Stop Nut

Substitute for FA656

HDW-10-32STOP $0.64ea

Trim Plate

A-8831

GTB-A8831+ $14.88ea

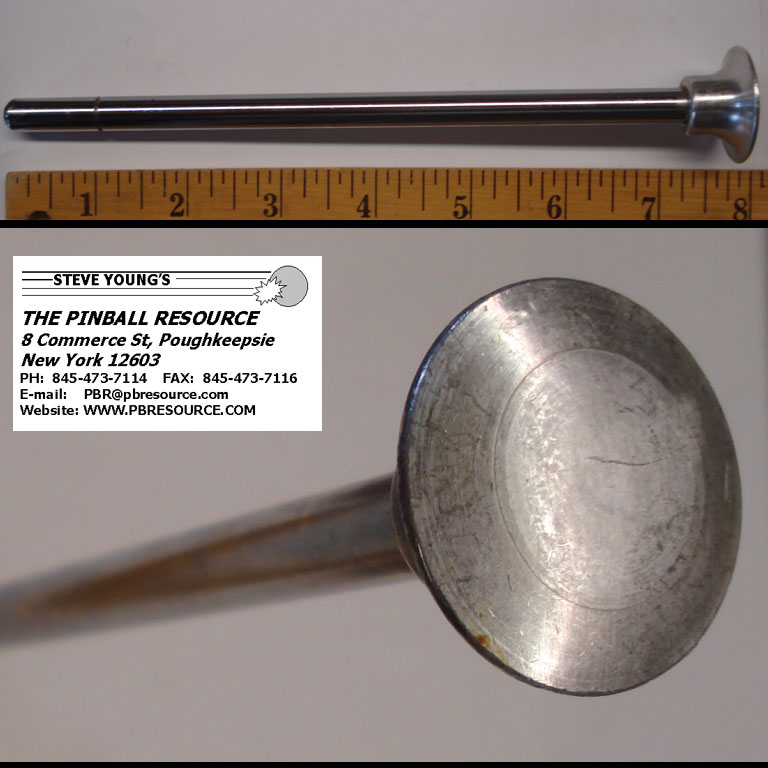

Ball Shooter Plunger /
Shooter Rod

A-8833

GTB-A8833+ $12.17ea

Ball Shooter Nylon Housing/Bushing

B-8834

GTB-B8834 $2.10ea

Gottlieb® 1988 Robo-War – 1989 Big House
Shooter Assemblies B-8835, 25879, 26029

Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

A-347
Used On:
Bad Girls,
Big House,
Hot Shots

GTB-A347 $0.72ea

Heavy Barrel Spring

25878
Used On:
Excalibur,
Robo-War

GTB-25878 $0.45ea

Shooter Spring

A-348
Used On:
Bad Girls,
Big House,
Hot Shots

GTB-A348 $0.88ea

Medium Shooter Spring

25877
Used On:
Robo-War

GTB-25877 $0.70ea

Heavy Shooter Spring

26028
Used On:
Excalibur

GTB-26028 Out of Stock

White Rubber Plunger Tip

Substitute for
1872

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 5133-37

HDW-CRING38 $0.20ea

Plunger Housing Plate

A-8829

Substitute for A-683

GTB-A8829 $2.08ea

Eyelet

A-17596

GTB-A17596 $0.25ea

Acorn 10-32 Elastic Stop Nut

Substitute for FA656

HDW-10-32STOP $0.64ea

Trim Plate

A-8831

GTB-A8831+ $12.18ea

Ball Shooter Plunger /
Shooter Rod

A-8833

GTB-A8833+ $12.17ea

Ball Shooter Nylon Housing/Bushing

B-8834

GTB-B8834 $2.10ea

Gottlieb® 1989 Bone Busters-1996 Barb Wire

Click on the above picture to see what parts we can offer for the assembly

Barrel Spring

A-347

Used On:
Barb Wire,
Big Hurt,
Bone Busters,
Cactus Jack,
Class of 1812,
Cue Ball Wizard,
Freddy,
Gladiators,
Lights, Camera, Action!,
Mario Andretti,
Rescue 911,
Shaq Attack
Silver Slugger,
Street Fighter II,
Surf 'N Safari,
Tee'd Off,
WaterWorld,
WipeOut!

GTB-A347 $0.72ea

Heavy Barrel Spring

25878

Used On:
Car Hop
Vegas

GTB-25878 $0.45ea

Shooter Spring

A-348

Used On:
Bone Busters,
Cactus Jack,
Class of 1812,
Cue Ball Wizard,
Gladiators,
Lights, Camera, Action!,
Mario Andretti,
Shaq,
Silver Slugger,
Street Fighter II,
Surf 'N Safari,
Tee'd Off,
WipeOut!

GTB-A348 $0.88ea

Medium Shooter Spring

25877
Used On:
Big Hurt,
Car Hop,
Freddy,
Vegas,
WaterWorld

GTB-25877 $0.70ea

Heavy Shooter Spring

26028
Used On:
Bell Ringer

GTB-26028 Out of Stock

Ultra Light Shooter Spring

27292
Used On:
Rescue 911

GTB-27292 $0.80ea

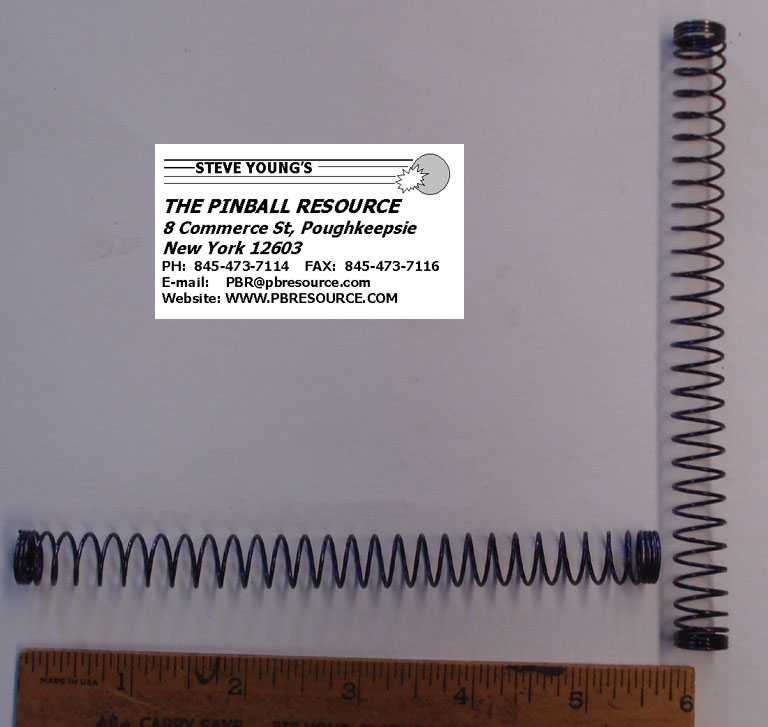

Medium/Heavy Shooter Spring

32106
Used On:
BarbWire!

GTB-32106 $0.70ea

Rubber Plunger Tip

Substitute for
1872, RP10, 30916, 30916Y

White – RIN-PTW

Black-RIN-PTB

RIN-PTW $0.30ea

RIN-PTB $0.39ea

C-RING 3/8”



Substitute for 5133-37
Substitute for FA684

HDW-CRING38 $0.20ea

Eyelet

A-17596

GTB-A17596 $0.25ea

Shooter Rod with Black Plastic Knob

26310

GTB-26310 $6.80ea

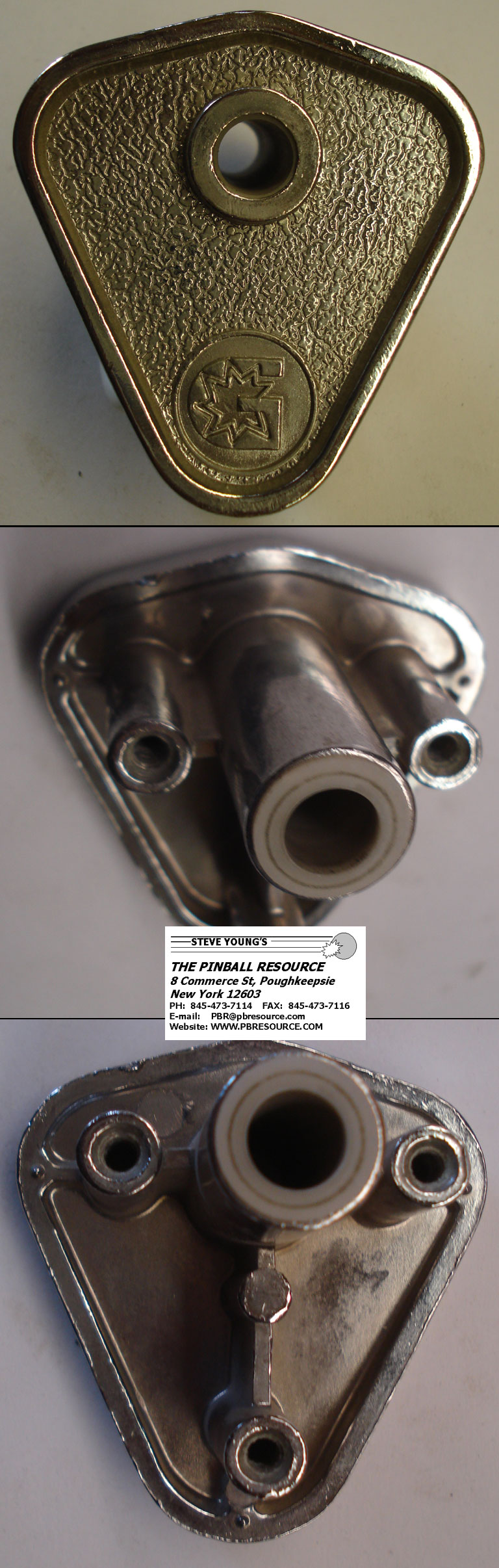

G” Ball Shooter Housing

26311

GTB-26311 Out of Stock


Clamp Plate

26312

GTB-26312 Out of Stock

Nylon Ball Shhoter Sleeve

26313

GTB-26313 $0.54ea

Gottlieb® / International Concepts Cocktail Table
Night Moves / Caribbean Cruise

Click on the above picture to see a larger picture

Barrel Spring

A-347

GTB-A347 $0.72ea

Shooter Spring

A-348

GTB-A348 $0.88ea

Rubber Plunger Tip

Substitute for
1872, RP10, 30916, 30916Y

White – RIN-PTW

Black-RIN-PTB

RIN-PTW $0.30ea

RIN-PTB $0.39ea

C-RING 3/8”



Substitute for 5133-37
Substitute for FA684

HDW-CRING38 $0.20ea

Eyelet

A-17596

GTB-A17596 $0.25ea

Shooter Rod with Black Plastic Knob

26310

GTB-26310 $6.80ea

Ball Shooter Housing

26668

GTB-26668 $6.85ea

Nylon Ball Shhoter Sleeve

26313

GTB-26313 $0.54ea

Playmatic

Pointy Shooter Rod

These pointy rods are Rusty, but should cleanup nicely
AC806

PLA-AC806 $12.00ea

Mounting Plate

AC841

PLA-AC841 -Out of Stock

Shooter Bezel

AC822

PLA-AC822 $4.50ea

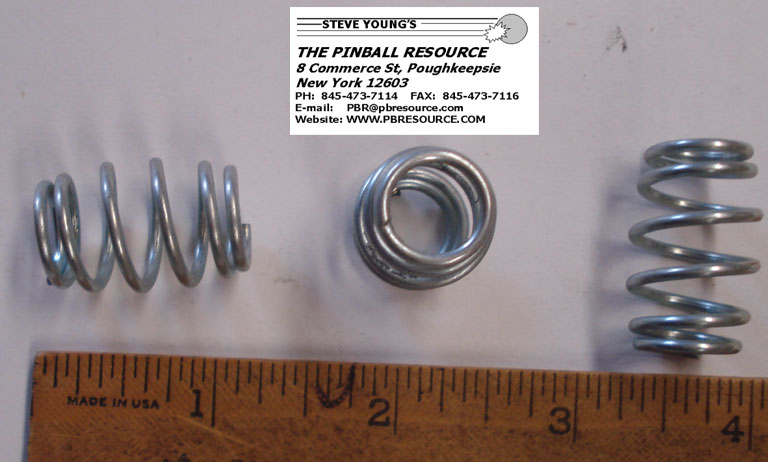

Barrel Spring


AC802

PLA-AC802 $1.00ea

Williams 1965-1973 Swinger

Click on the above picture to see what parts we can offer for the assembly

Nylon/Plastic Shooter Housing

This part 3B-7160 is No Longer Available!
If you need to replace this housing because it's missing or damaged, we offer a substitute assembly. This assembly is made from 90's Williams parts with a Black Plastic Knob Shooter Rod and Metal Shooter Housing(No “W” Logo). The substitute assembly must be used complete in order for it to work correctly, see WLL-B12445-1.

WLL-3B-7160 -No Longer Available



WLL-B12445-1 $32.13ea

Barrel Spring

Substitute for
10A-149

GTB-A347 $0.72ea

Shooter Spring Standard

Substitute for
10A-148-1

GTB-A348 $0.88ea

White Rubber Plunger Tip

Substitute for
23A-6327
*NOTE: If you shooter rod is reduced at the end, you will need to make it the same diameter as the shooter rod with something like electrical tape.

RIN-PTW $0.30ea

C-RING 3/8”



Substitute for 20-8718-1
and 20A8718-1

HDW-CRING38 $0.20ea

Mounting Plate


Substitute for 01-3535 and 1A3535

WLL-01-3535 $4.16ea




Williams 1973 Travel Time – 1997 No Good Gofers

Click on the above picture to see what parts we can offer for the assembly

Rubber Plunger Tip

Substitute for
23-6327

White – RIN-PTW

Black-RIN-PTB

RIN-PTW $0.30ea

RIN-PTB $0.39ea

C-RING 3/8”



Substitute for 20-8718-1
and 20A8718-1

HDW-CRING38 $0.20ea

Washer


2 Used per assembly


Substitute for
20-8715-51
and 20A8715-51

GTB-A5246 $0.45ea

Shooter Sleeve


03-7357 and 03A7357

WLL-03-7357 $0.63ea

Mounting Plate


Substitute for 01-3535 and 1A3535

Uses 3 Machine Screws
4010-01006-10
10-32X5/8 HDW-1032-5/8M

WLL-01-3535 $4.16ea



HDW-1032-5/8M $0.76ea

Shooter Hosuings
(No “W” Logo)

21-6645-1 -Substitute for 21-6645


Uses 3 Machine Screws
10-32X5/8
4010-01006-10
10-32X5/8 HDW-1032-5/8M

WLL-21-6645-1 $16.30ea







HDW-1032-5/8M $0.76ea

Barrel Spring

Substitute for
10A-149

DE-266-501000 $4.20ea


Shooter Spring
Black .033

Substitute for
10-148

Used on:
Theatre of Magic

WL-10-148 -Out of Stock

Shooter Spring
Standard .035

Substitute for
10-148-1

Used on:
1973 Travel Time-?????
Atlantis
Bugs Bunny Birthday Ball
Dr. Dude
Elvira / Party Monster
Funhouse(Left)
Harley Davidson
Hurricane
JokerZ!
Mousin' Around!
Party Zone
Police Force
Pool Sharks
Road Show(Right)
Swords of Fury
The Game Show
Transporter
Truck Stop
Whirlwind
White Water

GTB-A348 $0.88ea

Shooter Spring Heavy
Red .042

Substitute for
10-148-2

Used on:
Black Knight 2000
Earthshaker!
F-14 Tomcat
High Speed
Rollergames
Taxi

WLL-10-148-2 $0.88ea

Shooter Spring
BLUE

Substitute for
10-148-3

Used on:
Black Rose
Diner
Millionaire
Pinbot
Radical
The Machine-BOP

GTB-26028 Out of Stock


Shooter Spring
Green .033

Substitute for
10-148-4

Used on:
Addams Family
Addams Family Gold
Bad Cats
Banzai Run
Big Guns
Creature from the Black Lagoon
Corvette
Cyclone
Fire!
Funhouse(Right)
Giligan's Island
Riverboat Gambler
World Cup Soccer

WLL-10-148-4 -Out of Stock


Shooter Spring


Substitute for
10-148-5

Used on:
Space Station

WLL-10-148-5 -Out of Stock

Shooter Spring
Brown .026

Substitute for
10-148-6

Used on:
Twilight Zone

WLL-10-148-6 $0.88ea


Shooter Spring
White .028

Substitute for
10-148-7

Used on:
Road Show(Left)
Who?Dunnit

WLL-10-148-7 -Out of Stock

Shooter Rods



A-6387 (Silver Knob Metal) – No Longer Available

20-9253-4 (Red Knob)
–No Longer Available

20-9253-7 (Black Knob Plastic)

WLL-A6387 -Out of Stock

WLL-20-9253-4 -Out of Stock

W-20-9253-7E $6.58ea


Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
