Big Indian /Big Brave Webpage





The Pinball Resource has recently reproduced the Big Indian/Big Brave plastic set. Since most customers ask when ordering plastics sets what other parts do you have for this game, we have put up a webpage to answer that question. Listed below are some of the common parts people request that we currently have in stock for Big Indian/Big Brave! A more complete list of parts can be found in the documentation listed below!

Playfield Parts

Documentation

Cabinet Parts

Lamps

Repair Guide

Coils





Playfield Parts

Part

Description

Part Number

Price




Repro Playfield Plastic Set

Complete set of playfield plastics for Big Indian/Big Brave.

Click on thumbnail picture for plastic set pictures. Full plastic set has protective covering on rear in the picture(thus a little fuzzy)! Plastic set will be shipped with protective covering on both sides that needs to be removed prior to installing!

GTB-C14961A

$73.12





Rubber Ring Kit

Our Rubber Ring Kits replaces all of the rubber on all of the playfield that the ball comes into contact with. This include Flipper Rubber, Rebound Rubber, and Shooter Rod Plunger Tip.

Rubber Ring Kit Big Indian

$15.29

White Playfield Posts 1”

There are 39 of these faceted posts used in the game!

GTB-C11561

$0.50ea

White Split Playfield Posts

Post Cap #A-14488
Post Base #A14487
There are 5 #14488 Caps used and 5 #14487 Bases used on this game!

GTB-A14488
GTB-A14487

$0.53ea
$0.53ea

Pop Bumper Caps
There are 2 used on this game.

GTB-A11426 Red

$6.00ea

Drop Targets
There are 5 used on this game.
All 5 are a different color!

Big Indian Drop Target Set

Set for $20.00

Pop Bumper Bodies

There is 1 Blue A10436 and 1 Yellow A10436 used on this game.

GTB-A10436
Specify Which Color!

$6.00ea


Pop Bumper Skirts


There is 1 Blue A1218B and 1 Yellow A1218Y on this game.


Listed in manual as C-10433

GTB-A1218Y
GTB-A1218B

$1.15ea
$0.95ea


Pop Bumper Mylar Platter
There are 2 used on this game(Non-Adhesive)

GTB-B8246

Out of Stock

Ball Gate

There is 1 used on this game.


PBR Signature Reproduction Part!

GTB-A3290A

$12.34ea

Rebound Bracket
There is 1 used on this game



PBR Signature Reproduction Part!

GTB-A1309A

$16.22ea


Arch Stick Protector
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A9933A

$7.65ea.


Metal Runway Shield
There is 1 used on this game

PBR Signature Reproduction Part!

GTB-A8215A

$6.60


3” Jumbo Flipper Plastic
There are 2 used on this game

GTB-A13150
Same as Part
C13150

$2.25ea



Flipper Rebuild Kit

Each mini kit rebuilds 2 flippers. Each mini kit includes:
2 Flipper Plungers
2 Flipper Link/Studs
2 Roll Pins
2 Coil Stops
2 Flipper Bushings
2 Sleeves
2 EOS Switches
4 Screws
2 Retaining Rings

KT-GFLIP02M

$37.68ea

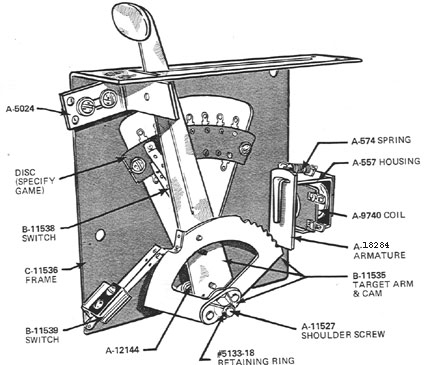

Vari-Target Parts

Commonly requested parts for Vari-Target.

A11527 Shoulder Screw
B11535 Target Arm & Cam
C11536 Frame
B11538 Switch
A12144 Spring
A18284 Armature
A557 Housing
A574 Spring
A5024 Bracket
B11539 Switch


Click on the thumbnail for an parts listing from the 1978 Gottlieb® Parts Catalog!

GTB-A11527
GTB-B11535
GTB-C11536
GTB-B11538
GTB-A12144
GTB-A18284
GTB-A557
GTB-A574
GTB-A5024
GTB-B11539

$2.00ea
Out Of Stock
$8.19ea
$3.75ea
$2.84ea
$0.72ea
$2.40ea
$0.55ea
$1.85ea
$5.55


Drop Target Assembly Parts

Commonly requested parts for the 5 Bank Drop Assembly.

A12180 Leg
A266 Coil Case
5133-15 Retaining Ring-Would ship as HDW-CRING532
A517 Spring
A13455 Spring
A12181 Trigger
A18995 Spring
B13408 5 Pos Reset Arm

GTB-A12180
GTB-A266
HDW-CRING532
GTB-A5081
GTB-A13455
GTB-A12181
GTB-A18995
GTB-B13408

$0.66ea
$2.90ea
$0.15ea
$0.96ea
$0.75ea
$2.52ea
$1.04ea
Out of Stock

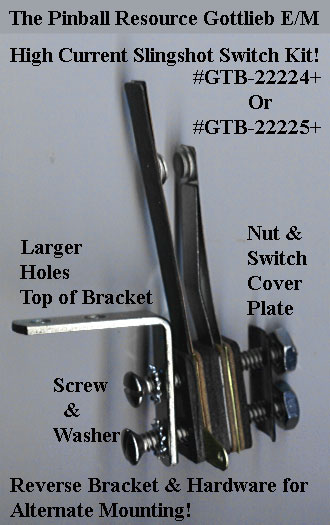

High-Current Slingshot Switch Kit

We offer a high current stand-up switch for the slingshots that offers a reversible bracket. This replaces 22224 & 22225. Click on the thumbnail for how to assemble!

GTB-22224+

$8.11ea

Rubber / 10 Point Switch Kit

We offer a kit for the Rubber / 10 Point stand-up switch.This replaces part numbers
B8547, B8550,
B17419, B17424,
B18078, B18079,
22227, and 22228.
Click on the thumbnail for how to assemble!

GTB-22227+

$5.00ea

Rollover Guides
There are 2 Yellow rollover guides on this game

2 Yellow #A9394Y

GTB-A9394Y

$1.39ea

Rollover Guides
There are 2 Green rollover guides on this game


2 Green #A9394G
*Note Original Green was single sided- no longer available- the A9394G is double sided- cut off one side to make single sided.

*NOTE: Different than Original – No Ridges on edge and a diffusion pattern was added to the bottom

GTB-A9394G

$1.39ea


Twin Star Rollover Button and Insert
There are 3 used on this game

3 Red Twin Star Buttons #D11966
(
Also available in Green, clear, and orange)
3 White Twin Star Inserts(Star) #D11968

GTB-D11966
GTB-D11968

$1.63ea
$0.80ea

Bullseye Target And Rivet
There is 2 used on this game!

GTB-A9383B
1” Rivet “Bullseye” Round Target Face

$4.00ea

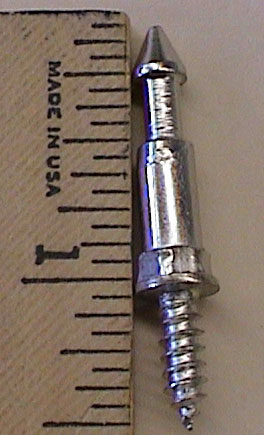

Mini Post Screw


There is 1 used on the game!.

GTB-A14792

$1.75ea



Post Fastening Screw/Hex


There are 24 used on this game!

There is No Tread on the top of this post screw. The GTB-SC125 Acorn Post Speed Nut creates its own thread when installed.

GTB-A8857

$1.40ea


Acorn Post Speed Nut

There are 24 used on this game!

*Note: Original Nickel Plated Acorn Post Speed Nuts are No Longer Available

This is a substitute Stainless Acorn Post Speed Nut(Not as shinny)



Our Palnut Tool makes replacing these a lot easier!

GTB-SC125X

$0.48ea

Pinballs
1 used on this game.

BALL116

$1.60ea

Documentation!

Part

Description

Part Number

Price

Owners Manual

Only Copies Available!

Manual
(Specify Game)
Big Indian or Big Brave

$4.40ea


Owners Schematic

Only Copies Available!

Schematic
(Specify Game)
Big Indian or Big Brave

$18.00ea



1978 Gottlieb® Parts Catalog

Spiral Bound Copy.
Covers games from Jungle Life/1973 Through Super Spin /1977

GTB-CAT-1978

$22.00ea

Cabinet Parts



Lockdown Bar

Lockdown bar with 2 adjustment screws!
Click On Thumbnail for actual Picture!

PBR Signature Reproduction Part!

GTB-D14008A

Out Of Stock



Flipper Buttons and Clear Straps



Metal Strap

Flipper Button
2 Flipper Buttons used
Red #B16680
2 White Start Bushing
#C13900

2 Clear Plastic Straps A13898+(Clear allows you to light the flipper buttons from inside the cabinet)These have protective covering on them that you need to peel off before installing.
or
2 Metal Straps A13898

GTB-B16680
GTB-C13900
GTB-A13898+
GTB-A13898

$1.81ea
$1.45ea
$0.98ea
$1.68ea

Flipper Button Cabinet Switches

There are 2 used on this game!

GTB-B17838+

$8.92ea





Ball Shooter Parts
(#B-8835)

Ball Shooter (Knob & Shaft) #A8833+
Barrel Spring #A347
Shooter Spring #A348
Trimplate #A8831+
Eyelet #A17596
Plate #A8829
Housing(Sleeve) #B8834
Retaining Ring #5133-37
Plunger Tip #RIN-PT
(Also included in Rubber Ring Kit)

Complete Assembly #B8835

GTB-A8833+
GTB-A347
GTB-A348
GTB-A8831+
GTB-A17596
GTB-A8829
GTB-B8834
HWD-CRING38
RIN-PT


GTB-B8835

$12.17ea
$0.72ea
$0.52ea
$14.88ea
$0.25ea
$2.08ea
$2.10ea
$0.14ea
$0.30ea


$40.06ea







Legs
All 4 are 31”

LEG-31CA

$19.90per leg

Leg Levelers
4 2” used on game

LEG2

$1.00ea

Leg Bolts
8 Leg bolts used on game

LEGBOLT

$0.80ea


Legs Tee
4 Used on this game

LEG-TEE

$1.29ea

Coin Door Lock 7/8"

LOCK

$6.93ea

Backbox Lock 7/8"

LOCK

$6.93ea


3 Chute Coin Door Shell


Click on the thumbnail to see the back of the door!

PBR Signature Reproduction Part!

GTB-D10066A

$217.54ea



Coin/Front Door Strike Plate



PBR Signature Reproduction Part!

GTB-B8089A

$27.96ea


Front Door Hole Plug

Used if you need less that 3 chutes!
Door Hole Plug A7478A
Retaining Ring HDW-CRING14

PBR Signature Reproduction Part!

GTB-A7478A
HDW-CRING14

$2.40ea
$0.15ea



Red Metal Door Push Button

Uses Retaining Ring HDW-CRING14
(Not Shown)


PBR Signature Reproduction Part!

GTB-A4524A
HDW-CRING14

$3.25ea
$0.15ea




Coin Reject Rod

Uses Retaining Ring HDW-CRING38
(Not Shown)


PBR Signature Reproduction Part!

GTB-A4386A
HDW-CRING38

$2.90ea
$0.14ea

Coin Door Return Flap

GTB-A11446A

$12.34ea




C10720A Shown!

Coin Entrance Plate

We offer 3 versions of this plate!
1 Chute C10718A
2 Chute C10719A
3 Chute C10720A


Click on the Thumbnail to see all 3 Coin Entrance Plates!

PBR Signature Reproduction Part!

GTB-C10718A
GTB-C10719A
GTB-C10720A

$56.25ea
$56.25ea
$56.25ea




White Coin Entrance Plate & Insert


White Insert
#C10713+ -$0.05
#C10711+ -$0.10
#C10715+ -$0.25


Labels
#A10724+ 2 Nickels – 1 Play
#A10725 $0.10 – 1 Play
#A16196A $0.25 – 1 Play
#A10727+ $0.25 – 2 Plays
#A10728 $0.25 – 3 Plays

GTB-C10713+
GTB-C10711+
GTB-C10715+


GTB-A10724+
GTB-A10725
GTB-A16196A
GTB-A10727+
GTB-A10728

$2.50ea
$2.50ea
$2.50ea


$2.10ea
$2.40ea
$3.35ea
$3.34ea
$2.40ea

Chime Rubber Grommets
6 Used on this game!

GTB-2752

$0.47ea


Chime Nylon Washer
12 Used on this game!

GTB-104316E

$0.25ea


Chime Plunger
3 Used on this game!

GTB-A1487+

$3.40ea

Chime Bar
1 Used on this game! This is the shortest chime bar, 5 3/4”.

GTB-A12018

Out Of Stock

Chime Rebuild Kit

For Solid State and E/M Games
Kit Includes:
6 X 2752 Chime Grommets
12 X Nylon Washer 104316E
3 X Long Bell Sleeve A5142
1 X Piece Beer Seal
4-3/4"Long(Cut to correct length -Different than original individual pieces)

KT-GCHIME-01

$7.50ea

Knocker Plunger
1 Used on this game!

GTB-A1487+

$3.40ea

Pin
5 Used on this game!

GTB-A10542+

$0.25ea

Replacement Power Cord
14' Foot

CORDSET-14

$10.70ea

Fuse Holder

FUS-HLDR

$3.00ea

Instruction / Score Card Covers

#A16143 -Instruction Card
(*Note – Instruction covers are Gottlieb® NOS but do have a Yellow tint to them!)

#A16142- Score Card

GTB-A16143
GTB-A16142

$0.85ea
Out of Stock

Tilt Parts

Click on the Thumbnail for a larger picture!

Housing C10336
Switch B17543
Wire A15164
Push Nut PS-0904032
Strike Plate A358
Tilt Bob A356 (30879)
Clip A14653


GTB-C10336
GTB-B17543
GTB-A15164
GTB-PS0904032
GTB-A358
GTB-A356
GTB-A14653

Out Of Stock
$3.75ea
$2.70ea
$0.25ea
$1.50ea
$2.60ea
$1.20ea

Lamps


#47 Lamps

Sold by the box, 10 to a box. Used on playfield and in backbox
(A better solution than #44 Lamps)

*Due to Covid-19 / Supply Chain Issues, brand of lamps may not be Eiko.

LAM0047A

$2.50PB

#455 Blinking Lamps

Sold by the box, 10 to a box.

LAM0455A

$10.00PB

Repair Guide




Pinball Machine Maintenance
By Henk De Jager

The best book in our opinion for fixing Multi-Player E/M games! This spiral bound book covers the repair and maintenance of Electro-Mechanical Pinball Machines from 1960-1977. It contains many tips and hints for the amateur. It has clear explanations with many schedules and illustrations. It provides step by step repair and replacement of components, with little knowledge of electronics required. It contains repairs for Gottlieb® along with Bally and Williams machines. This book contains 195 pages.

BK-PMM+

$37.95

Coils used on Big Brave
*Note-All Of Our Coils Come With Sleeves

Coil Usage

Flipper Coil

GTB-A5141

$15.00ea

Coil Usage

Chime

GTB-A5195

$10.00ea


Coil Usage

Scoring Unit

GTB-A9154

$10.00ea

Coil Usage

Vari-Target
Relay's

GTB-A9740

$10.00ea

Coil Usage

Knocker

GTB-A5143

$10.00ea


Coil Usage

Coin Lockout

GTB-A7677

$10.00ea

Coil Usage

Control Bank Reset
Target Bank Reset

GTB-A15555

Replaces A5196

$15.00ea

Coil Usage

Relay's

GTB-A9735
(Replaces A489)

$10.00ea

Coil Usage

Tilt Hold Relay
Hold Relay

GTB-A9738

$10.00ea

Coil Usage

Tilt Relay

GTB-A9742

$10.00ea

Coil Usage

Control Bank's

GTB-A1118

$10.00ea

Coil Usage

Add Bonus Unit
Add Replay Unit
Ball Return

GTB-A1496

$10.00ea

Coil Usage

Pop Bumper

GTB-A4893

$10.00ea

Coil Usage

Kicking Rubbers
Subtract Bonus Unit
Subtract Replay Unit

GTB-A5194

$10.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

Privacy Policy

©2004-2023 The Pinball Resource
