Gottlieb
® Relay Parts

*NOTE: All of our Relay Coils are listed Here!

Gottlieb®

AG Relay

AS Relay

Magnetic Relay

Interlock Relay

R Relay

Bank Relay
(Control or Sequence)


How can I tell what type of relay I am working on?


1978 Parts Catalog Page



Gottlieb® “AG” Relay Parts


1995 Parts Catalog Page


Description
/ Original Part Number

PBR Part Number / Price

Housing /
Relay Frame


C-4989

GTB-C4989 $4.16ea

Grommet

5240

GTB-A5240 $0.82ea

Relay Clip

A-9519

GTB-A9519 $0.86ea

4-Slot E/M Armatures with Insulated Arms
(A.C.)

A-5369

----------------------
If you don't want the complete assembly, individual parts are:

A4988 Armature
A5269 Insulator Arm
FA550 Rivet

GTB-A5369 $3.27ea











GTB-A4988 $1.70ea
GTB-A5269 $0.50ea
GTB-FA550 $0.15ea

4-Slot Solid State Armatures with Insulated Arms
(D.C.)


A-16892

----------------------
If you don't want the complete assembly, individual parts are:

A16891 Washer
A4988 Armature
A5269 Insulator Arm
FA550 Rivet

GTB-A16892 $3.52ea











GTB-A16891 Out Of Stock
GTB-A4988 $1.70ea
GTB-A5269 $0.50ea
GTB-FA550 $0.15ea

8-Slot E/M Armatures with Insulated Arms
(A.C.)

A-5370

----------------------
If you don't want the complete assembly, individual parts are:

A4988 Armature
C4990 Insulator Arm
FA550 Rivet

GTB-A5370 $3.47ea












GTB-A4988 $1.70ea
GTB-C4990 Out of Stock
GTB-FA550 $0.15ea

8-Slot Solid State Armatures with Insulated Arms
(D.C.)


A-16893

----------------------
If you don't want the complete assembly, individual parts are:

A16891 Washer
A4988 Armature
C4990 Insulator Arm
FA550 Rivet

GTB-A16893 $3.28ea











GTB-A16891 Out Of Stock
GTB-A4988 $1.70ea
GTB-C4990 Out of Stock
GTB-FA550 $0.15ea

Spring

A-5081

GTB-A5081 $0.66ea

*NOTE: AG Switches are 1-3/4” Long. Our 3” Blades and Contacts Can't be used to rebuild these switches. We don't offer the Blades and don't offer the contacts for you to rebuild your AG switches. The AG Switches and AG Switch Parts we offer are listed below.

Switch

Lockin Make with Small Points

B-5363

GTB-B5363 Out Of Stock

Switch

Make with Small Points

B-5364

GTB-B5364 $2.50ea

Switch

Make with Large Points

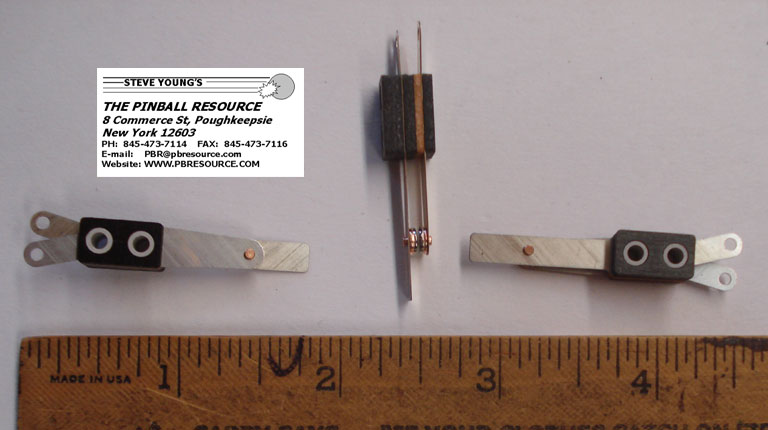

B-5365

Use as a substitute for 26752 and 26060

GTB-B5365 $2.50ea

Switch

Break with Small Points

B-5366

GTB-B5366 $2.50ea

Switch

Break with Large Points

B-5367

GTB-B5367 $2.50ea

Switch

Break-Make with Small Points

B-5368

GTB-B5368 Out of Stock

Switch

Break-Make(2) with Small Points

B-10737

GTB-B10737 Out of Stock

Switch

Break-Make(2) with Small Points

B-15211

GTB-B15211 $4.50ea

Switch Parts


Switch Cover A-4981

Override Blade Retainer A-4979

Switch Blade Separator

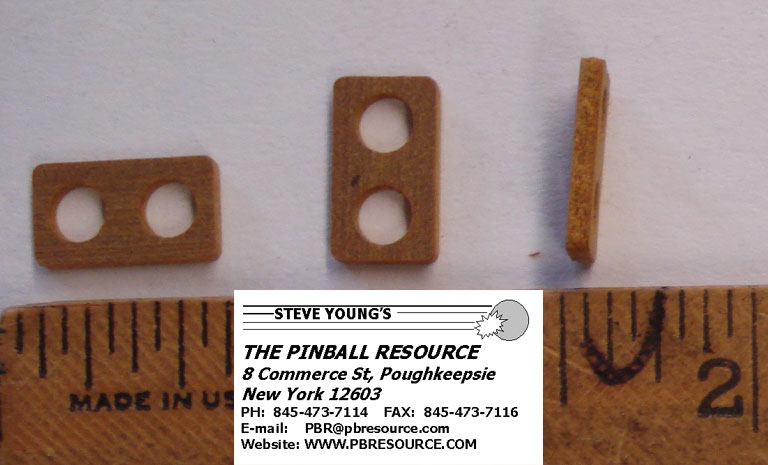

A-4977 1/16” Thick

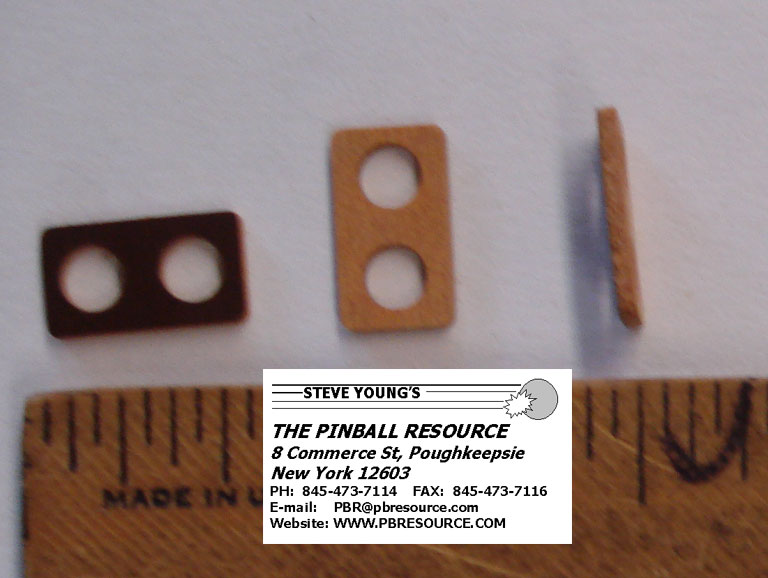

A-4978 3/64” Thick
A-4980 Aluminum Override Blade Spacer

GTB-A4981 $0.20ea
GTB-A4979 $0.20ea
GTB-A4977 $0.20ea
GTB-A4978 $0.20ea
GTB-A4980 $0.20ea

Hardware – Srews and Nuts

#3-48 FHMS Screws and a Nut for AG/AS Relays

1” Long Screw HDW-3-48X1F
3/4” Long Screw HDW-3-48X3/4F
1/2” Long Screw HDW-3-48X1/2F

Nut HDW-3-48NUT

HDW-3-48X1F $0.50ea

HDW-3-48X3/4F $0.50ea

HDW-3-48X1/2F $0.50ea

HDW-3-48NUT $0.15ea


1966 Parts Catalog Page

Gottlieb®
“AS” Relay Parts


1978 Parts Catalog Page

Gottlieb® “AS” Relay Adjustment Instructions


Armature


Used in games 1967 and before

A-9014

GTB-A9014 Out Of Stock

Assembled Armature


Used in games 1967 and later

A-14044

GTB-A14044 Out Of Stock
(See Rebuild Kit Below)

Assembled Armature Rebuild Kit


Used to rebuild Assembled Armature A-14044(Will Not work with previous version of armature
A-9014)

Kit Includes:
1 X Drive Finger Spring A-13819
1 X Drive Finger C-13817
1 X Spring A-8737

KT-GASRELAY $5.00ea

Ratchet

D-8755

GTB-D8755 Out Of Stock

Ratchet and Cam Assemblies

No assemblies available- order individual Cams listed below.


Cam's


C-8752
C-8753
C-8754
C-10356
C-15221
C-15658


GTB-C8752 $3.69ea
GTB-C8753 $3.69ea
GTB-C8754 $3.69ea
GTB-C10356 $3.69ea
GTB-C15221 $3.69ea
GTB-C15658 $3.69ea

Armature Frame

C-8750

GTB-C8750 $4.44ea

Coil Frame

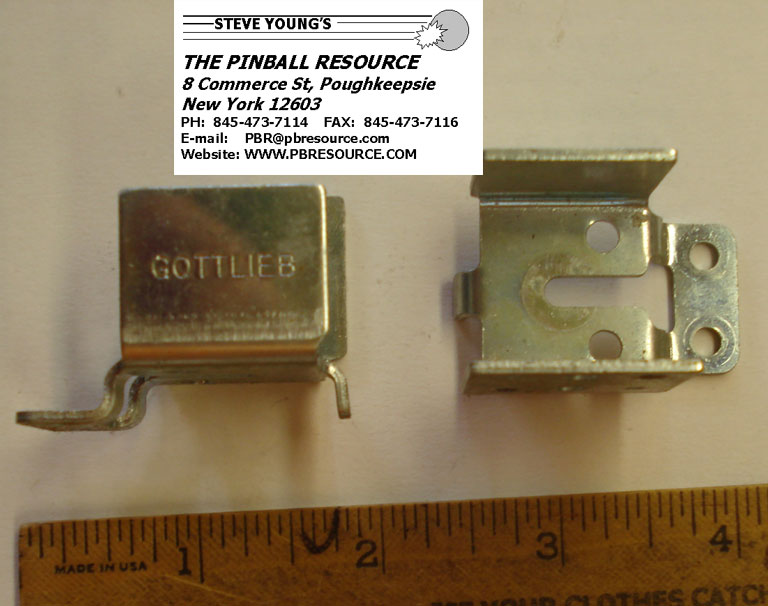

C-8749

GTB-C8749 $5.12ea

Armature & Fulcrum

A-13818 For Assembled Armature A14044(Will Not work with previous version of armature
A-9014)

GTB-A13818 Out of Stock

Driver Finger Spring

A-13819 For Assembled Armature A14044(Will Not work with previous version of armature
A-9014)

GTB-A13819 $1.05ea

Driver Finger

C-13817 For Assembled Armature A14044(Will Not work with previous version of armature
A-9014)

GTB-C13817 $3.30ea

Ratchet Spring

A-8740

GTB-A8740 $1.26ea

Armature Springs

A-8737 (Standard)-Same spring as B-8737

A-9272 RED (Heavy Duty)

GTB-A8737 $0.65ea

GTB-A9272 $0.55ea

Spring

A-9152

GTB-A9152 $0.55ea

Override Stop

A-8738

GTB-A8738 $0.78ea

Outboard Bearings


B-8746 and B-8747
Used in games 1967 and before with A-9014 Armature

GTB-B8746 $4.84ea

GTB-B8747 $4.84ea

Outboard Bearings


A-16624 and A-16625
Used in games 1967 and later with A-14044 Armature

GTB-A16624 $4.84ea

GTB-A16625 $4.84ea

Mounting Strip


A3926 Used in games 1967 and before with A-9014 Armature

Grommet for Mounting Strip A-5240

GTB-A3926 -Out of Stock



GTB-A5240 $0.82ea

Relay Clip

B-10378

GTB-B10378 $1.84ea

Switch Blade

A-8741

GTB-A8741 $1.35ea

Switch

B-9018
(Only Used Available)

GTB-B9018 $4.60ea

Switch

B-10957
(Only Used Available)

GTB-B10957 $6.14ea

Switch

B-11467

GTB-B11467 -Out of Stock

Switch

B-12804

GTB-B12804 – Out of Stock

Wiper Retainer

B-11788

GTB-B11788 $3.84ea

Wiper Retainer

B-9015

GTB-B9015 Out of Stock


GTB-A9016+ Shown




GTB-A9017+ Shown

Wiper Disc

New-Redesigned Part!(See complete description Here!)

A-9016 (Same as A8933)
A-9017 (Same as A8934)

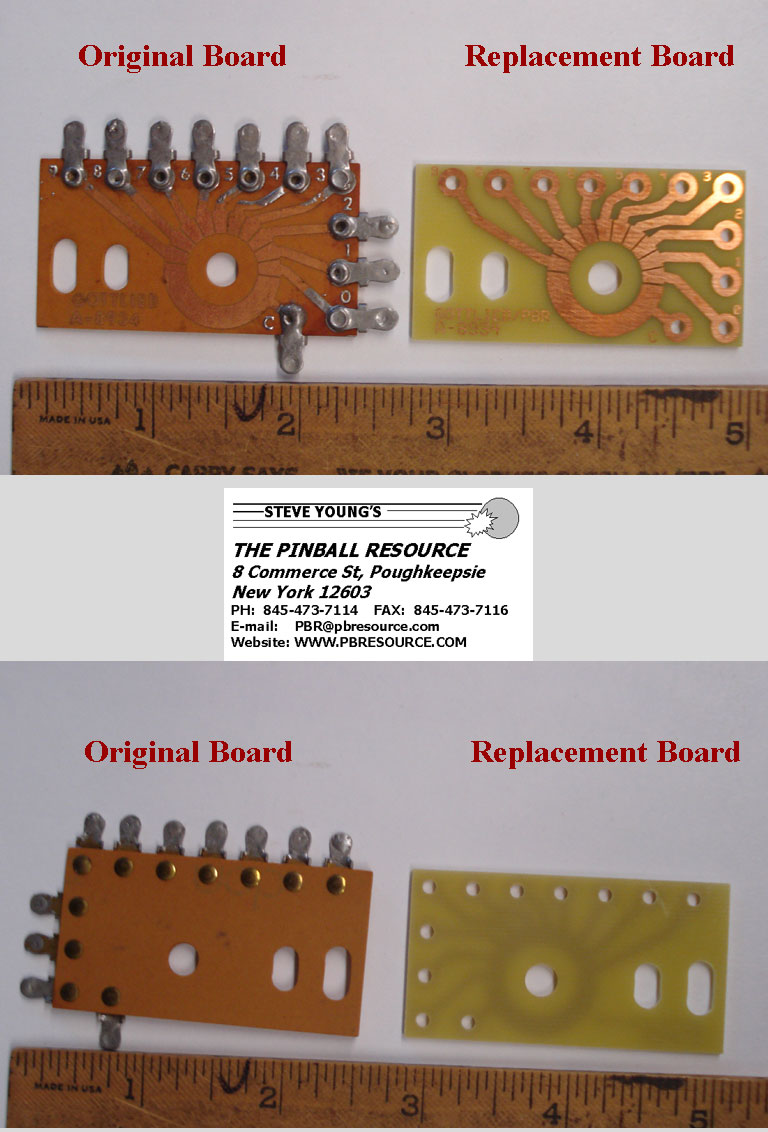

*Note” New boards don't have soldering tabs. You will need to either solder directly to board or purchase and install Disc Solder Tab GTB-A4701 using Rivets GTB-A4907

GTB-A9016+ $7.81ea
GTB-A9017+ $7.81ea



GTB-A4701 $0.20ea
GTB-A4907 $0.15ea

Hardware – Srews and Nuts

#3-48 FHMS Screws and a Nut for AG/AS Relays

1” Long Screw HDW-3-48X1F
3/4” Long Screw HDW-3-48X3/4F
1/2” Long Screw HDW-3-48X1/2F

Nut HDW-3-48NUT

HDW-3-48X1F $0.50ea

HDW-3-48X3/4F $0.50ea

HDW-3-48X1/2F $0.50ea

HDW-3-48NUT $0.15ea


1957 Parts Catalog Page

Gottlieb® “Magnet”
Relay Parts


1962 parts Catalog Page

Gottlieb® Magnet Relay Adjustment Instructions


Spring

A-1671
(Used on earlier assemblies)

GTB-A1671+ $1.35ea

Spring

A-4965
(Used on later assemblies)

GTB-A4965 $0.55ea

Spring

A-5081

GTB-A5081 $0.66ea


Armature Plate

A-324

GTB-A324 -Out of Stock

Relay Frame

B-1507

GTB-B1507 $2.20ea




1968 Parts Catalog Page



Gottlieb® “Interlock”
Relay Parts


1978 Parts Catalog Page


Interlock Frame

C-4128

GTB-C4128 Out Of Stock


Interlock Frame

C-15685

GTB-C15685 Out Of Stock

Relay Clip

A-9519

GTB-A9519 $0.86ea

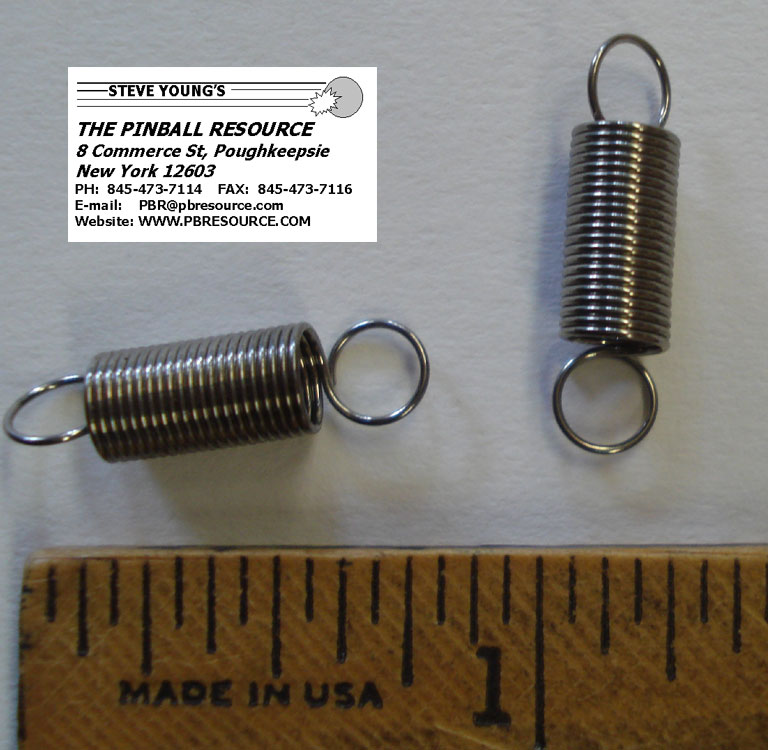

Spring

A-4965

GTB-A4965 $0.55ea

Spring

A-574

GTB-A574 $0.55ea


Armature Plate

A-324

GTB-A324 -Out of Stock


Switch Mounting Bracket

A-10212

GTB-A10212 -Out of Stock


Armature and Lifter

A-10214

GTB-A10214 -Out of Stock

Relay Housing

A-557

GTB-A557 $2.40ea

Switch

Make with Small Points

B-5364

GTB-B5364 $2.50ea

Armature and Tip



A-15993

GTB-A15993 $2.75ea

Housing

B-15684

GTB-B15684 $4.35ea

Housing /
Relay Frame


C-4989

GTB-C4989 $4.16ea


1957 Parts Catalog Page

Gottlieb® “R”
Relay Parts


Spring

A-574

GTB-A574 $0.55ea

Grommet

5240 (Replaces #374)

GTB-A5240 $0.82ea


One Station Mounting Bracket

A-216

GTB-A216 Out of Stock

Relay Housing

A-557

GTB-A557 $2.40ea

Upper Make Blade/Contact

A-561

GTB-A561 -Out of Stock

Upper Break Blade/Contact

A-562

GTB-A562 -Out of Stock


Lower Make Blade/Contact

A-563

GTB-A563 -Out of Stock

Backing Blade

A-564

GTB-A564 -Out of Stock

Lower Make Blade/Contact

A-565

GTB-A565 -Out of Stock


Flexible Pigtail Wire

A-577

GTB-A577 -Out of Stock

Lower Break Blade/Contact

A-578

GTB-A578 -Out of Stock


Silver Washer

A-579

GTB-A579 -Out of Stock


1A Armature Assembly

A-951

GTB-A951 -Out of Stock


2A Armature Assembly

A-952

GTB-A952 -Out of Stock


3A Armature Assembly

A-953

GTB-A953 -Out of Stock


4A Armature Assembly

A-954

GTB-A954 -Out of Stock


1B Armature Assembly

A-955

GTB-A955 -Out of Stock


2B Armature Assembly

A-956

GTB-A956 -Out of Stock


3B Armature Assembly

A-957

GTB-A957 -Out of Stock


4B Armature Assembly

A-958

GTB-A958 -Out of Stock


1C Armature Assembly

A-959

GTB-A959 -Out of Stock


2C Armature Assembly

A-960

GTB-A960 -Out of Stock


1A-1B Armature Assembly

A-961

GTB-A961 -Out of Stock


1A-1C Armature Assembly

A-962

GTB-A962 -Out of Stock


2A-1B Armature Assembly

A-963

GTB-A963 -Out of Stock


1B-1C Armature Assembly

A-964

GTB-A964 -Out of Stock


Silver Point 3/32”

A-2041

GTB-A2041 -Out of Stock


Heavy Pigtail Wire

A-2846

GTB-A2846 -Out of Stock


1A-1B-1C Armature Assembly

A-3027

GTB-A3027 -Out of Stock


2A-2B Armature Assembly

A-4429

GTB-A4429 -Out of Stock


2A-1B-1C Armature Assembly

A-4629

GTB-A4629 -Out of Stock


3A, 1B Armature Assembly

A-4887

GTB-A4887 -Out of Stock


3A, 1C Armature Assembly

A-5139

GTB-A5139 -Out of Stock


1957 Parts Catalog Page

Gottlieb®
“Bank Relay”
Parts
(Control or Sequence)


1978 Parts Catalog page

Spring

A-729

GTB-A729 $1.45ea

Spring

A-728

GTB-A728 $0.55ea


Spring

A-276

GTB-A276 -Out of Stock

Spring

A-517
)

GTB-A517 $0.66ea

Spring

A-7769

GTB-A7769 $0.55ea

Spring

A-7827

GTB-A7827 $0.55ea


Armature

A-375

GTB-A375 -Out of Stock

Armature and Lifter

A-9032

GTB-A9032 $3.24ea

Armature Plate

A-9105

GTB-A9105 $1.85ea


Flat Pin Insulator

A-1083
(Not offered – see Actuating Arms listed below)



Flat Pin Insulator

A-12173
(Not offered – see Actuating Arms listed below)



Flat Pin

A-727
(Not offered – see Actuating Arms listed below)



Hex Head Pin

A-12172
(Not offered – see Actuating Arms listed below)


Actuating Arm

A-542
(Used only available)

GTB-A542 $3.20ea



Actuating Arm

A-4420
(1 Insulator in last hole position)
*Note: Color of insulator may vary from picture
-Insulators can Not be moved

GTB-A4420 $4.88ea



Actuating Arm

A-4426
(1 Insulator in second to last hole position)
*Note: Color of insulator may vary from picture
-Insulators can Not be moved

GTB-A4426 $4.85ea

Actuating Arm

A-7742
(2 Insulators, one in 4
th hole and one in last hole position)
*Note: Color of insulator may vary from picture
-Insulators can Not be moved

GTB-A7742 $5.87ea

Actuating Arm

A-7830
(2 Insulators, one in 3rd
hole and one in second to last hole position)
*Note: Color of insulator may vary from picture
-Insulators can Not be moved

GTB-A7830 $3.78ea

Bank-A-Ball Reproduction Pool Ball Arms

Part Number Suffix matches Number on Pool Ball

GTB-B8720+1 $30.60ea
GTB-B8720+2 $30.60ea
GTB-B8720+3 $30.60ea
GTB-B8720+4 $30.60ea
GTB-B8720+5 $30.60ea
GTB-B8720+6 $30.60ea
GTB-B8720+7 $30.60ea
GTB-B8720+8 $30.60ea
GTB-B8720+9 $30.60ea
GTB-B8720+10 $30.60ea
GTB-B8720+11 $30.60ea
GTB-B8720+12 $30.60ea
GTB-B8720+13 $30.60ea
GTB-B8720+14 $30.60ea
GTB-B8720+15 $30.60ea




King Of Diamonds /
Diamond Jack /
Solitaire
Reproduction Card Arms

A-10129

Decals set for the above arms
DL-KOD

GTB-A10129A $4.80ea



GTB-DL-KOD $15.00

Bank Pivot Support

Right B-4068 –
Left B-4069

GTB-B4068 -Out of Stock
GTB-B4069 -Out of Stock

Stop

A-4637 -Only used available

GTB-A4637 $0.85ea

Shoulder Screw

A-1843

GTB-A1843 $3.20ea

Switch 1-B

B-8457
(Used Only)

GTB-B8457 $4.25ea


Picture for Reference Only

Reset Arm
1 Coil / 5 Position


B-8778
(Used Only -Part will be incomplete and will not match the picture -Useful if yours arm is missing)

GTB-B8778 $18.80ea

Reset Arm
1 Coil / 6 Position


B-8779
(Used Only -Part will be incomplete and will not match the picture -Useful if yours arm is missing)

GTB-B8779 $16.50ea

Reset Arm
1 Coil / 7 Position


B-8780
(Used Only -Part will be incomplete and will not match the picture -Useful if yours arm is missing)

GTB-B8780 $12.00ea

Top

Home Page

EMAIL PBR

How To Order

FAQ

©2004-2017 The Pinball Resource
