Coil Sleeve Reference Webpage

A reference webpage for converting most pinball manufacturers Coil Sleeve Part Numbers to Pinball Resource(PBR) Part numbers!

Please let us know if you don't see your game coil sleeve part numbers listed, we will add them!

Not sure how these Coil Sleeves are Measured, Click Here!

*NOTE: All Sleeves are 1/2” Diameter unless otherwise noted

If your Application needs a Brass Sleeve, Contact Us – We stock many different Sizes!

Standard Coil Sleeves

PBR
Part Number

Size
A

Bally
(Pre-Williams)

Gottlieb®

Stern /
Sega/
Data East

Williams / Bally

Chicago Coin
/ Old Stern

Price


Sleeve-A8111

1-1/4”


A-8111


03-7066-1

130-1536
91-1509

$0.45ea

Sleeve-1-3/8

1-3/8”





143-808

$0.45ea

Sleeve-GTB-Standard

1-5/8”


A-5064




$0.45ea

Sleeve-BLY-Standard

1-5/8”






$0.45ea

Sleeve-WMS-Standard

1-3/4”



545-5031-00
260-0004-00

03-7066


$0.45ea

Sleeve-A5065

1-13/16”


A-5065


03-7066-3


$0.45ea

SLEEVE-N

1-15/16”
9/16” Diameter





2A-232

$0.48ea

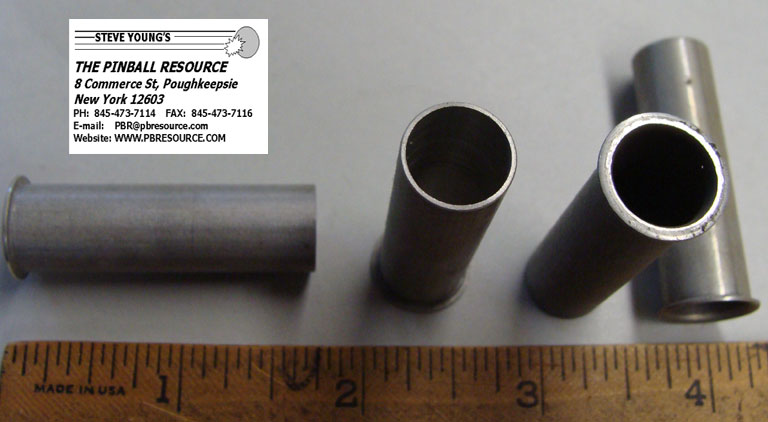

WLL-03-7066-4

2-1/16”




03-7066-4


$0.64ea

SLEEVE-2-3/16

2-3/16”



545-5388-00
260-0003-00

03-7066-5


$0.45ea

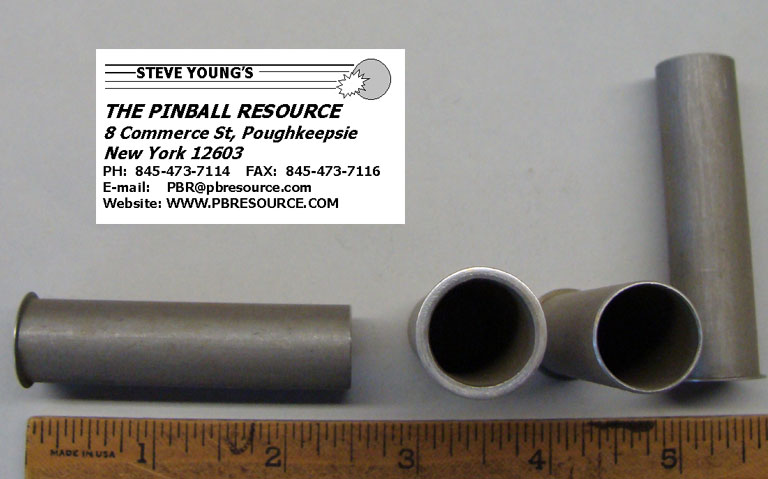

WLL-03-7068

2-15/16”
9/16” Diameter




03-7068


$0.80ea

Sleeve-A5172

2-1/2


A-5172




$0.45ea

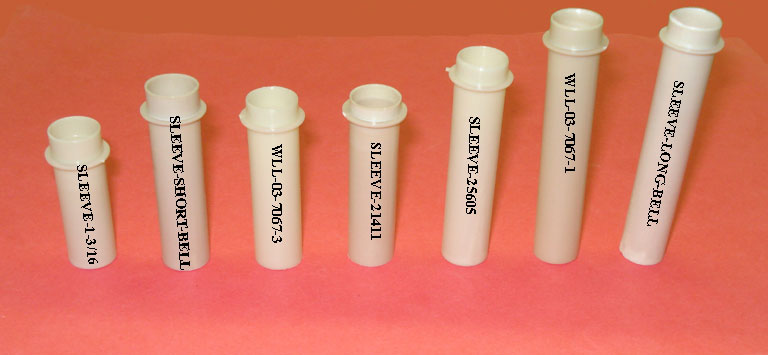

Bell/Chime/Upkicker Coils Sleeves

PBR
Part Number

Size
A - B

Bally
(Pre-Williams)

Gottlieb®

Stern /
Sega/
Data East

Williams / Bally

Chicago Coin
/ Old Stern

Price

Sleeve 1-3/16

1-3/16” -
1-1/2”





4A-159-1

$0.45ea

Sleeve-Short-Bell

1-5/8” -
2”


A-6087


03-7067

4A-159

$0.45ea

WLL-03-7067-3

1-9/16” -
1-13/16”




03-7067-3


$0.45ea

Sleeve-21411

1-11/16” -
1-13/16”


21411

545-5076-00
545-5076-01



$0.45ea

Sleeve-25605

2-1/16” -
2-1/4”


25605

545-5709-00

03-7067-5


$0.45ea

Sleeve-Long-Bell

2-1/2” -
2-3/4”


A-5142

545-5847-00

03-7067-1
03-7067-6

167-800

$0.45ea

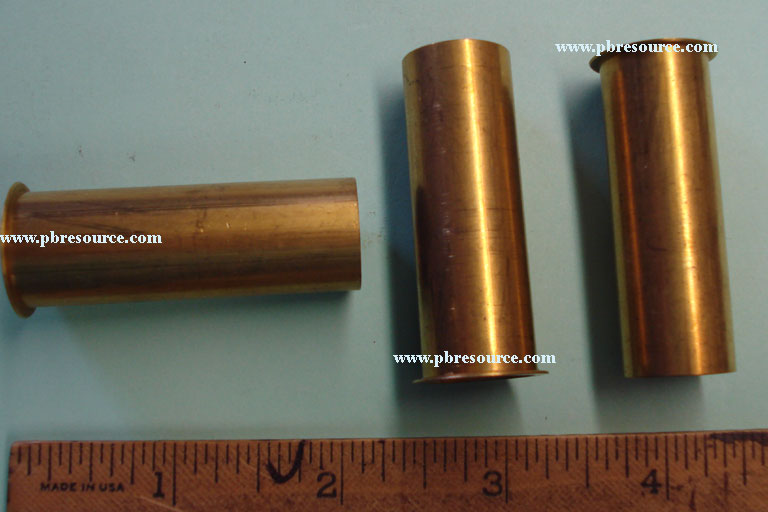

Brass Coil Sleeves

PBR
Part Number

Size

Bally
(Pre-Williams)

Gottlieb®

Stern /
Sega/
Data East

Williams / Bally

Chicago Coin
/ Old Stern

Price

Sleeve-BR-S

5/8”ID

2”Long




For Coils starting with “H”

For Coils starting with “S”

$3.00ea
