The
Pinball Resource
Bells, Chimes, and Knockers Webpage
|
|
Bells
|
Knocker
|
Chimes
|
|
Bells
|
|
Part
|
Description
|
Part Number / Price
|
|
|
1 Point 3” Bell
(Black) Assembly
These
are reproduction assemblies for Gottlieb® E/M games!
Can
also be converted for use in Williams, Bally, Chicago Coin, and
even arcade games, you need to tell us the game and what voltage
it runs on!
The below parts are included in the assemby,
but can also be ordered individually
Plunger
A1487+
Gottlieb® Coil A5143
|
GTB-B8672A
$42.78ea
GTB-A1487+
$3.40ea
GTB-A5143 $10.00ea
|
|
|
10/100 Point 3” Bell
(Plated) Assembly
These
are reproduction assemblies for Gottlieb® E/M games!
Can
also be converted for use in Williams, Bally, Chicago Coin, and
even arcade games, you need to tell us the game and what voltage
it runs on!
The
below parts are included in the assemby, but can also be ordered
individually
Plunger
A1487+
Gottlieb® Coil A5143
|
GTB-B8671A
$52.36ea
GTB-A1487+
$3.40ea
GTB-A5143 $10.00ea
|
|
|
5”
Bell Assembly
This
is a reproduction assembly for Gottlieb® E/M and Solid State
games!
For
E/M games
– Order
GTB-B9579+ as shown on left. Original part number in Gottlieb®
Parts Catalog is B-9579. This ships with coil A-5194 Coil
installed without a diode. Some 60's games originally used A-5143
Coil.
For
Solid State
- System/1
and System/80 games, you must order and install diode SC-1N4004
on the coil A-5194 already installed on assembly. Original part
number in Gottlieb® Parts Catalog is B-9579.
For
Solid State - System/80A, System/80B, and System/3 games,
request a coil change to A5195 with diode installed. Original part
number in Gottlieb® Parts Catalogs are MA-352 and 24632.
|
GTB-B9579+
$52.59
SC-1N4004
$0.11ea
|
|
|
Bell
Striker Bracket/Plunger/Coil Assembly
This
is a reproduction assembly used to strike the 5” bell for
Gottlieb® E/M, Bally E/M, and Williams E/M games!
For
Gottlieb®
E/M games
– Order
GTB-B9359+ as shown on left with A5143 coil. Original part number
in 1966 Gottlieb® Parts Catalog is B-9359.
For
Williams E/M games –
Substitute
5” Bell Striker B-5393 and 4770.
Order Coil A2-23-750
24volt (Williams ref #B-5393) Order Coil A2-26-1300/1350
50volt
For Bally E/M games –
uses
50v use Williams Coil A2-26-1300/1350 50volt
For
the 5” Bell itself, see B2091 Below
|
GTB-B9359+
with A5143 Coil $30.66ea
GTB-B9359+ with A2-23-750 Coil
$30.66ea
GTB-B9359+
with A2-26-1300 Coil $30.66ea
|
|
|
Bells Shells
3”
A1168A Plated
Can also be
used as a substitute for
Bally A-2859 used on E/M Stepping
Unit
3” A4414A
Black
5” B2091
|
GTB-A1168A
$13.26ea
GTB-A4414A $9.90ea
GTB-B2091+ $29.89ea
|
|
|
Gottlieb®Bell
Clapper
Reproduction
Bell Clapper for Gottlieb E/M Small Step Switch
|
GTB-A2522A
$7.62ea
|
|
|
Williams Bell Clapper
Bell
Clapper for Williams E/M 50 Step Unit
|
WLL-1A3610+
$4.23ea
|
|
Knockers
|
|
|
E/M Knocker Assembly
These
are reproduction assemblies for Gottlieb® E/M games!
These
can also be using in Williams E/M games starting ~1965 without any
changes(Just check to ensure they will fit!).
Can also be
converted for use in Bally, Chicago Coin, and even arcade games,
you need to tell us the game and what voltage it runs on!
Parts
For Above Assembly:
Plunger
A1487+
Gottlieb® Coil A5143
|
GTB-B8673A
$35.77ea
GTB-A1487+
$3.40ea
GTB-A5143 $10.00ea
|
|
|
S/S Gottlieb® Knocker
Assembly
Listed
in manuals/Parts Catalogs as MA-12
Parts
For Above Assembly:
Plunger
A1487+
Grommet A5240
Coil
A5195
|
GTB-26782
$27.81ea
GTB-A1487+
$3.40ea
GTB-A5240 $0.82ea
GTB-A5195 $10.00ea
|
|
|
S/S Williams/Bally Knocker
Assembly
For
Williams games
Replaces B10686-1
B10686-2.
Parts
For Above Assembly:
Plunger A5387
Grommet
23-6420
Coil AE-23-800-01
|
WLL-B10686-1+
$23.90
WLL-A5387
$3.40ea
WLL-23-6420+ $0.29ea
WLL-AE23-800-01 $10.00ea
|
|
|
E/M Williams Knocker
Parts
Plunger
A5387
Grommet 23-6420
Coil
A2-23-750
|
WLL-A5387
$3.40ea
WLL-23-6420+ $0.29ea
WLL-A2-23-750 $10.00ea
|
|
|
E/M Bally Knocker Parts
Coil
C27-1000
|
BLY-C27-1000
$10.00ea
|
|
Chimes
|
|
|
Gottlieb® E/M Individual Chime
Parts|
Grommet
2752
Plunger A1487+
Nylon Washer 104316
Coil
A5195
BeerSeal 1 Foot
SLEEVE
LBS $0.75ea
|
GTB-2752
$0.47ea
GTB-A1487+ $3.40ea
GTB-104316E $0.25ea
GTB-A5195
$10.00ea
MAT-Beerseal $1.18pf
SLEEVE LBS $0.75ea
|
|
|
Gottlieb® S/S Chime Parts|
Grommets
2752
Plunger A1487+
Coil
is game dependent – Refer to your game manual- Some common
coils
Nylon Washer 104316
Coil
A5195 or A17876
BeerSeal
1 Foot
3
X Long Bell Sleeve A5142
|
GTB-2752
$0.47ea
GTB-A1487+ $3.40ea
GTB-104316E $0.25ea
GTB-A5195
$10.00ea
GTB-A17876 $10.00ea
MAT-Beerseal $1.018pf
SLEEVE
LBS $0.75ea
|
|
|
Gottlieb® Chime Rebuild
Kit
For E/M and Solid State Games
Kit Includes:
6 X 2752
Chime Grommets
6 X Nylon Washer 104316E(Game
originally used 12 – but we are sending a thicker washer,
thus you only need 6)
3 X Long Bell Sleeve A5142
1
X Piece Beer Seal -4-3/4” Long(Cut to correct length
-Different than original individual pieces)
|
KT-GCHIME-01
$7.50ea
|
|
|
Williams E/M Chime Parts|(3
Chime Bar Version)
Plunger
A5387
Coil is game dependent – Refer to your game manual-
Some common coils
Coil A2-26-1300
Coil A2-26-1025
Rubber
Cushion 23A-6520
Shock Mount 23A-6330
Nylon Washer
3A-7356
Vinyl Sleeve 20A-8957-1
Long Bell Sleeve 03-7067-6
|
WLL-A5387
$3.40ea
WLL-A226-1300 $10.00ea
WLL-A226-1025
$10.00ea
WLL-23A6520 $0.45ea
WLL-23A6330 $0.50ea
WLL-3A7356
$0.25ea
WLL-20A8957-1 $0.20ea
SLEEVE LBS $0.75ea
|
|
|
Williams Chime Rebuild
Kit
for E/M and Solid State games (3 Chime Bar Version)
Kit
Includes:
1 X 23A-6520 Rubber Cushion
3 X Long Bell Sleeve
03-7067-6
6 X 23A-6330 Shock Mount
6 X 3A-7356 Nylon
Washer
6 X 20A-8957-1 Vinyl Sleeve
|
KT-WCHIME-02
$7.50ea
|
|
|
Williams E/M Chime Parts|(1
Chime Bar Version)
Replacement
Plunger Available (Nylon may need to be trimmed) -Contact US!
Coil
C27-1300
|
WLL-C27-1300
$10.00ea
|
|
|
Bally Single Unit
3
Bar Rebuild Kit
Kit
includes:
6 X Grommet
R111-39
3 X Short Bell Sleeve Sleeve-SBS
6 X Eyelet
M122-24
|
KT-BCHIME-01
$7.83
|
|
|
Bally E/M Chime Parts|
Plunger
A550-6+
Grommet
R111-39
Coil
CC-31-2000
Short Bell Sleeve Sleeve-SBS
Eyelet M122-24
|
BLY-A550-6+
$4.38ea
BLY-R111-39 $0.58ea
BLY-CC31-2000
$10.00ea
SLEEVE-SBS $0.75ea
Eyelet M122-24 $0.85ea
|
|
|
Bally S/S Chime Parts|
Coil
CN-31-2000
Plunger
A550-6+
Grommet
R111-39
Short Bell Sleeve Sleeve-SBS
Eyelet M122-24
|
BLY-A550-6+
$4.38ea
BLY-R111-39 $0.58ea
BLY-CN31-2000
$10.00ea
SLEEVE-SBS $0.75ea
Eyelet M122-24 $0.85ea
|
|
|

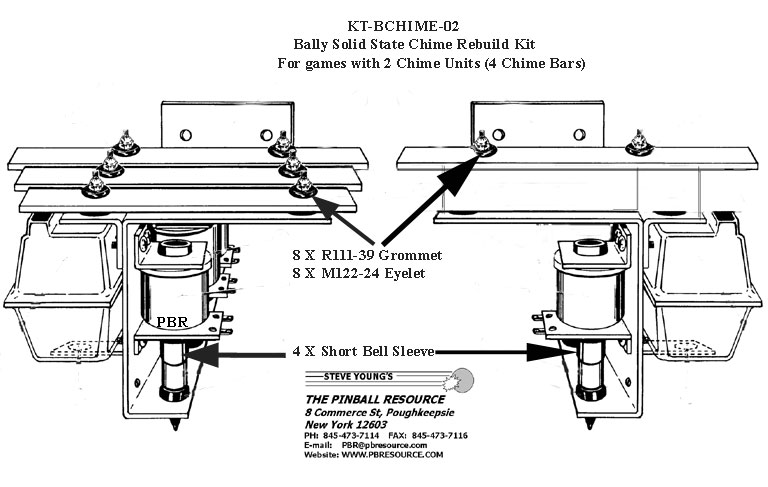

Bally Solid State Rebuild Kit
(For
games with 2 Chime Assemblies – 4 Bars)
Kit
includes:
8 X Grommet
R111-39
4 X Short Bell Sleeve Sleeve-SBS
8 X Eyelet
M122-24
|
KT-BCHIME-02
$10.84
|
|
|
